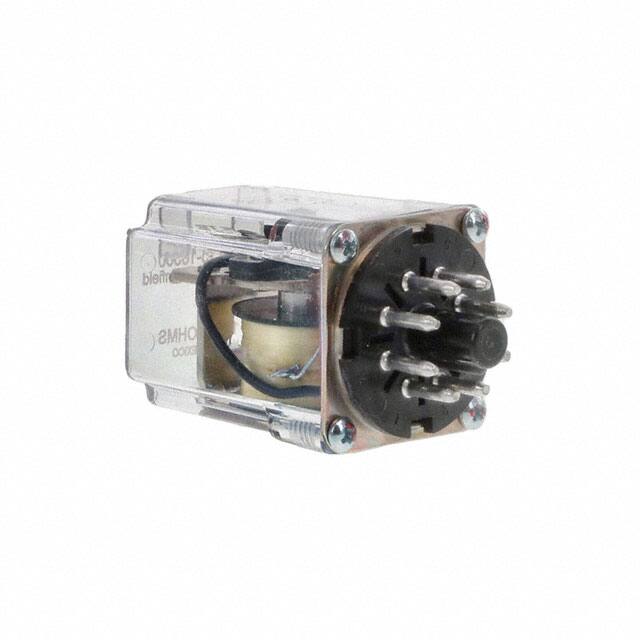

KCP-5-10000

Manufacturer :

TE Connectivity Potter & Brumfield Relays

Product Category :

Signal Relays, Up to 2 Amps

Contact Voltage(AC)-Max :

120 V

Base Product Number :

KCP

Body Height :

50.8 mm

Operating Temp Range :

-45C to 70C

Features :

--

Contact Form :

1 Form C

Electrical Life :

100000 Cycle(s)

Body Breadth :

35.71 mm

Contact Rating (Current) :

2A

Series :

KCP

Switching Voltage :

120VAC - Max

Package / Case :

Dust Cover

Coil Resistance :

10000(ohm)

Mounting Type :

Socketable

Body Length or Diameter :

35.71 mm

Coil Current :

3.6(mA)

Packaging :

Box or Tray

Relay Action :

Momentary

Product Depth (mm) :

35.71(mm)

Physical Dimension :

35.71mm x 35.71mm x 50.8mm

Coil Voltage(DC)-Max :

31.25 V

Relay Type :

GENERAL PURPOSE

Package :

Bulk

Voltage Rating (VAC) :

120(V)

Seal Rating :

-

Contact/Output Supply Type :

AC

Sealing :

DUST PROOF

Must Release Voltage :

-

Termination Type :

Snap-On

Must Operate Voltage :

-

Rad Hardened :

No

Mounting Feature :

SOCKET MOUNT

Relay Construction :

Non-Latching

Seal :

Unsealed

Manufacturer :

Killark-Hubbell Electrical Products

Product Status :

Obsolete

Turn On Voltage (Max) :

--

ECCN Code :

EAR99

Operate Time :

20(ms)

Coil Type :

--

Coil Suppression Diode :

No

Mounting Style :

Socket

Release Time :

10ms

Reach Compliance Code :

Compliant

Product Length (mm) :

35.71(mm)

Pin Count :

8

Contact Current Rating :

2(A)

Coil Insulation :

-

Operating Temperature :

-35°C ~ 85°C

Coil Voltage :

--

Surface Mount :

No

Contact Current(AC)-Max :

2 A

Relay Function :

SPDT

Contact Material :

Silver

Coil Current(DC)-Max :

0.004 A

Coil Voltage DC :

36

Termination Style :

8-Pin Circular Plug

Coil/Input Supply Type :

DC

Contact Arrangement :

SPDT

Product Height (mm) :

50.8(mm)

LED Indicator :

No

Turn Off Voltage (Min) :

--

Coil Power :

125 mW
