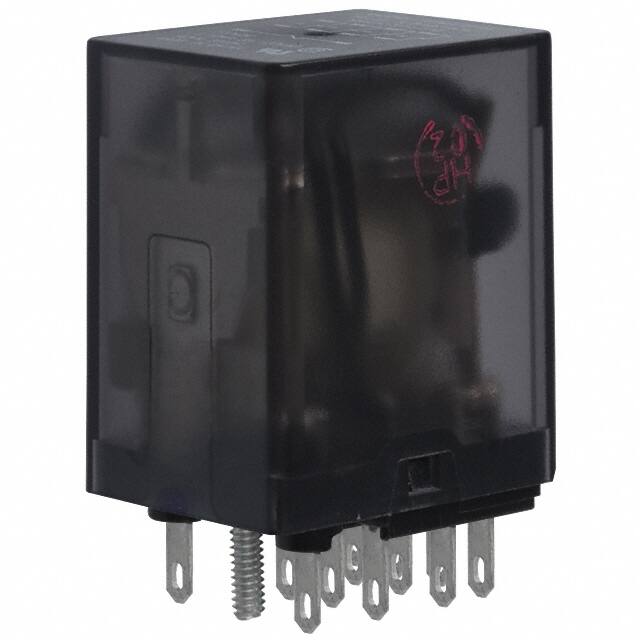

KHAU-17D11-6

Manufacturer :

TE Connectivity Potter & Brumfield Relays

Product Category :

Power Relays, Over 2 Amps

Series :

KHA

Pin Count :

14

Contact Current(AC)-Max :

3 A

Coil Suppression Diode :

No

Maximum Power Rating :

0.1HP

Coil Voltage :

6VDC

Mounting :

SOCKET MOUNT

Voltage Rating (VDC) :

28(V)

Release Time :

6ms

Body Height :

34.9 mm

Product Type :

General Purpose Relays

Physical Dimension :

28.2mm x 21.8mm x 34.9mm

Mounting Style :

Socket

Contact Voltage(AC)-Max :

120 V

Contact Termination :

Solder Lug

Coil Voltage DC :

6

Seal Rating :

-

Input Switching Control Type :

Random

Product Category :

General Purpose Relays

Power Rating :

1.0000 W

Coil Resistance :

40 Ohm

Relay Action :

Momentary

Dielectric Strength Between Coil and Contacts :

1500 Vrms

Turn Off Voltage (Min) :

--

Features :

Insulation - Class B

Sealing :

DUST PROOF

Manufacturer :

TE Connectivity

Application :

GENERAL PURPOSE

Package :

Tray

Turn On Voltage (Max) :

4.5 VDC

Number of Poles :

4

Coil Voltage(DC)-Max :

6 V

LED Indicator :

No

Pick-up Voltage (Max) :

4.5VDC

Dielectric Strength Between Open Contacts :

1000 Vrms

Resistance :

3.16 Ohm

Must Operate Voltage :

4.5 VDC

Coil Insulation :

Class B

Terminal Length :

0.008 inch

Weight :

45 g

Coil/Input Supply Type :

DC

Coil Operate Voltage(DC) :

4.5 V

Operating Temperature :

-45 to 70 °C

Termination Type :

Snap-On

Seal :

Unsealed

Body Length or Diameter :

28.2 mm

Package / Case :

Dust Cover

Resistor Type :

High Reliability, MIL-PRF-39007

Product Depth (mm) :

28.17(mm)

Contact Current(DC)-Max :

3 A

Contact Form :

4 Form C

Length :

28.2mm

Contact Resistance :

100 mΩ

Contact Voltage(DC)-Max :

28 V

Contact Rating (Current) :

3A

Insulation Resistance :

100000000 Ω

Contact Material :

Silver

Electrical Life :

100000 Cycle(s)

RoHS :

Details

Contact Current Rating :

5(A)

Number of Terminals :

8

Factory Lead Time :

14 Weeks

End Contact Material :

Silver

Body Breadth :

21.8 mm

Height :

34.9mm

Temperature Coefficient :

50.0000 ppm/°C

Terminal Type :

PCB Pin

Termination Style :

Solder Lug

Operating Temp Range :

-45C to 70C

Contact Configuration :

4PDT

Coil Type :

Non Latching

Width :

21.82 mm

Coil Current :

150(mA)

ECCN Code :

EAR99

Operate Time :

13 ms

Brand :

TE Connectivity

Subcategory :

Relays

Packaging :

Box or Tray

Switching Voltage :

240VAC - Max

Mounting Feature :

SOCKET MOUNT

Relay Construction :

Non-Latching

Reference Standard :

CSA; UL

Contact/Output Supply Type :

AC/DC

Power Consumption :

900 mW

Coil Power :

900 mW

Rad Hardened :

No

Mounting Type :

Socketable

Coil Current(DC)-Max :

0.15 A

Product :

Power Relays

Must Release Voltage :

-

Product Status :

Active

Relay Form :

4 Form C

Switching Current :

3A

Relay Type :

GENERAL PURPOSE

Voltage Rating (VAC) :

120(V)

Product Length (mm) :

21.82(mm)

Supplier Package :

Dust Cover

Surface Mount :

No

Product Length :

6.35

Depth :

21.8mm

Contact Arrangement :

4PDT

Reach Compliance Code :

Compliant

Relay Function :

4PDT

Base Product Number :

KHAU

Resistance Tolerance :

1

Type :

Standard
