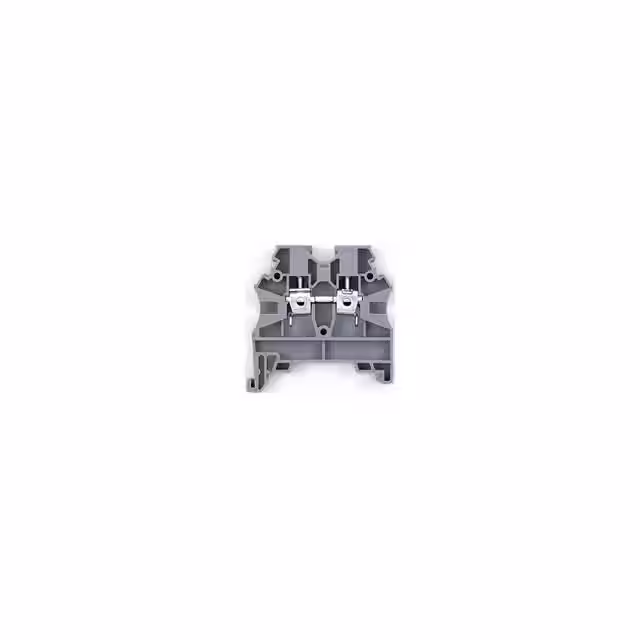

KL304208

Manufacturer :

American Electrical, Inc.

Product Category :

Din Rail, Channel

ELV :

Compliant

Lifecycle Status :

Production (Last Updated: 1 week ago)

Power Rating :

250 mW

Max Operating Temperature :

155 °C

Tolerance :

0.1 %

Material Flammability Rating :

-

Contact Plating :

Tin

Packaging :

Tape and Reel

Current - IEC :

24 A

Stripping Length :

10mm

Termination :

Solder

Temperature Coefficient :

15 ppm/°C

Case Code (Imperial) :

1206

Wire Gauge or Range - AWG :

12-26 AWG

Case Code (Metric) :

3216

Disconnect Type :

-

Color :

Brown

RoHS :

Compliant

Material - Insulation :

Thermoplastic

Package :

Box

Current - UL :

20 A

Terminal - Width :

5.0mm

Wire Gauge or Range - mm² :

0.5-4mm²

Type :

Feed Through

Mount :

Surface Mount

Number of Levels :

1

Product Status :

Active

Height :

550 µm

Voltage - IEC :

750V

Voltage Rating :

25 V

Resistance :

665 kΩ

Voltage - UL :

600V

Termination Style :

Screw

Number of Positions :

2

Series :

AVK

Number of Resistors :

1

Number of Terminations :

2

Features :

-

Fuse Type :

-

Width :

1.55 mm

Length :

3.05 mm

Composition :

Thin Film

Min Operating Temperature :

-55 °C

Radiation Hardening :

No
