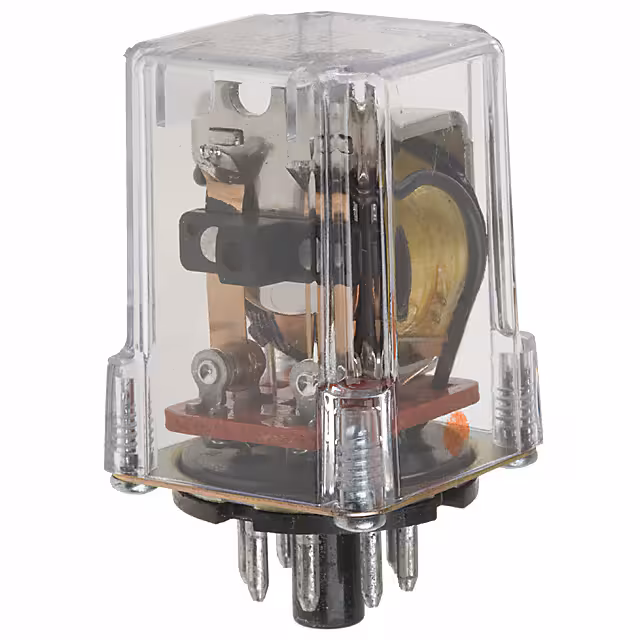

KRP-11DG-48

Manufacturer :

TE Connectivity Potter & Brumfield Relays

Product Category :

Power Relays, Over 2 Amps

Coil Resistance :

1.8 kOhms

Electrical Life :

10000000 Cycle(s)

Contact Current(DC)-Max :

10 A

Surface Mount :

No

Seal Rating :

-

Packaging :

Bulk

Turn On Voltage (Max) :

36 VDC

Contact Current(AC)-Max :

10 A

Coil Voltage :

48VDC

Coil Operate Voltage(DC) :

36 V

Physical Dimension :

48.8mm x 37.3mm x 34.9mm

Reach Compliance Code :

Compliant

Contact Form :

DPDT (2 Form C)

Contact Voltage(AC)-Max :

240 V

Termination Type :

Snap-On

Body Height :

34.9 mm

Coil Insulation :

Class B

ECCN Code :

EAR99

Package :

Bulk

Mounting Feature :

SOCKET MOUNT

Body Breadth :

37.3 mm

Contact/Output Supply Type :

AC/DC

Operating Temperature :

-45°C ~ 70°C

Release Time :

10 ms

Coil/Input Supply Type :

DC

Body Length or Diameter :

48.8 mm

Contact Rating (Current) :

10A

Reference Standard :

CSA; UL

Mounting Type :

Socketable

Termination Style :

Plug In, 8 Pin (Octal)

Operate Time :

15 ms

Features :

Insulation - Class B

Product Status :

Obsolete

Manufacturer :

TE Connectivity

Switching Voltage :

240VAC - Max

Series :

KRP

Turn Off Voltage (Min) :

--

Coil Voltage(DC)-Max :

48 V

Relay Type :

GENERAL PURPOSE

Coil Current(DC)-Max :

0.025 A

Coil Type :

Non Latching

Coil Current :

26.7mA

Relay Action :

Momentary

Contact Material :

Silver Cadmium Oxide (AgCdO)

Relay Function :

DPDT

Must Operate Voltage :

36 VDC

Must Release Voltage :

-

Coil Power :

1.3 W

Base Product Number :

KRP-11
