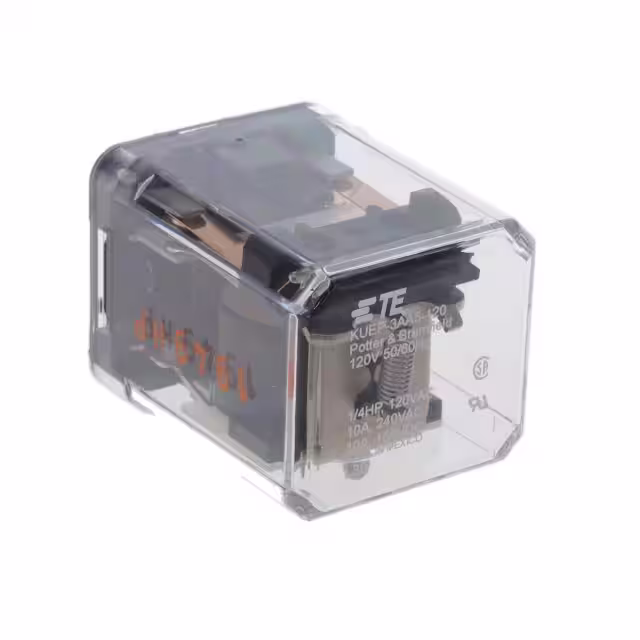

KUEP-3AA5-120
Or copy the link below:
- Mfr.Part #
- KUEP-3AA5-120
- Manufacturer
- TE Connectivity Potter & Brumfield Relays
- Package / Case
- Dust Cover
- Datasheet
- Download
- Description
- RELAY GEN PURPOSE SPST 10A 120V
- Stock
- 2
- In Stock ：
- 2
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity Potter & Brumfield Relays
- Product Category :
- Power Relays, Over 2 Amps
- Operating Temp Range :
- -45C TO 55C
- Coil Power :
- 2.1 VA
- Rad Hardened :
- No
- Must Release Voltage :
- -
- Series :
- KUEP
- Contact Form :
- 1 Form X
- Product Type :
- General Purpose Relays
- Supplier Package :
- Dust Cover
- Product :
- Power Relays
- Product Length (mm) :
- 38.89(mm)
- Contact Termination :
- Quick Connect
- Product Status :
- Active
- Product Height (mm) :
- 55.55(mm)
- Power Consumption :
- 2.1 VA
- Mounting Type :
- Chassis Mount
- Package / Case :
- Dust Cover
- Turn Off Voltage (Min) :
- --
- Termination Style :
- 0.187Quick Connect
- Manufacturer :
- TE Connectivity
- Product Depth (mm) :
- 35.71(mm)
- Pick-up Voltage (Max) :
- 102VAC
- Must Operate Voltage :
- 102 VAC
- Features :
- Insulation - Class B
- Base Product Number :
- KUEP-3
- Seal :
- Unsealed
- Coil Current :
- 17.5mA
- Seal Rating :
- -
- Operate Time :
- 15(ms)
- Release Time :
- 10ms
- Width :
- 35.7 mm
- Coil Insulation :
- Class B
- Coil Voltage :
- 120VAC
- Packaging :
- Box or Tray
- RoHS :
- Details
- Brand :
- TE Connectivity
- Contact Material :
- Silver Cadmium Oxide
- Subcategory :
- Relays
- Coil Type :
- Non Latching
- Mounting Style :
- Socket
- Contact Arrangement :
- SPST-NO-DM
- LED Indicator :
- yes
- Height :
- 48.4 mm
- Operating Temperature :
- -45°C ~ 55°C
- Voltage Rating (VDC) :
- 150(V)
- Coil Voltage AC :
- 120
- Coil Resistance :
- 1700(ohm)
- Coil Suppression Diode :
- No
- Contact Current Rating :
- 10(A)
- Product Category :
- General Purpose Relays
- Switching Voltage :
- 150VDC - Max
- Contact Rating (Current) :
- 10A
- Type :
- Industrial Relay
- Relay Construction :
- Non-Latching
- Turn On Voltage (Max) :
- 102 VAC
- Pin Count :
- 4
- Length :
- 38.9 mm
- Relay Type :
- GENERAL PURPOSE
- Package :
- Bulk
- Datasheets
- KUEP-3AA5-120
KUEP-3AA5-120 datasheet pdf and Power Relays, Over 2 Amps product details from TE Connectivity stock available at
