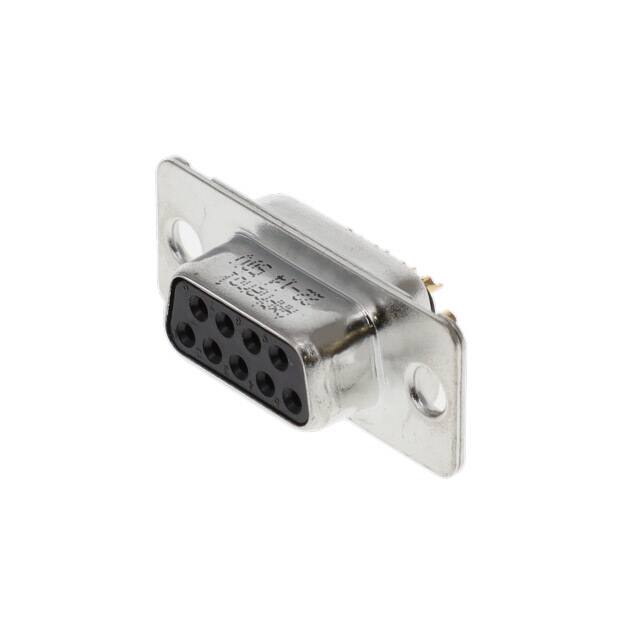

L177DE09S
Or copy the link below:
- Mfr.Part #
- L177DE09S
- Manufacturer
- Amphenol Communications Solutions
- Package / Case
- Datasheet
- Download
- Description
- CONN D-SUB RCPT 9POS SLDR CUP
- Stock
- 180
- In Stock ：
- 180
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Amphenol Communications Solutions
- Product Category :
- D-Sub Connector Assemblies
- Series :
- D
- Reach Compliance Code :
- Unknown
- Contact Form :
- Machined
- Shell Size, Connector Layout :
- 1 DE E
- Filter Feature :
- No
- Number of Positions :
- 9
- Connector Type :
- Receptacle, Female Sockets
- Mounting Type :
- Free Hanging (In-Line)
- Pitch :
- 2.74mm
- Contact Finish Thickness :
- 20.0μin 0.51μm
- RoHS Status :
- RoHS Compliant
- Published :
- 2006
- Voltage - Rated :
- 300V
- MIL Conformance :
- yes
- Flange Feature :
- Housing/Shell (Unthreaded)
- Contact Type :
- Signal
- Connector Style :
- D-Sub
- Dielectric Material :
- Thermoplastic, Glass Filled
- Factory Lead Time :
- 6 Weeks
- Orientation :
- Straight
- Option :
- GENERAL PURPOSE
- Mount :
- Free Hanging, Panel
- Number of Rows :
- 2
- DIN Conformance :
- No
- Empty Shell :
- No
- Mixed Contacts :
- yes
- JESD-609 Code :
- e4
- Current Rating :
- 7.5A
- Mating Information :
- MULTIPLE MATING PARTS AVAILABLE
- IEC Conformance :
- No
- Contact Finish :
- Gold
- Material Flammability Rating :
- UL94 V-0
- Shell Finish :
- Tin
- Termination :
- Solder Cup
- Packaging :
- Bulk
- Housing Material :
- Glass
- Operating Temperature :
- -55°C~125°C
- Total Number of Contacts :
- 9
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Color :
- Black
- Shell Material, Finish :
- Steel, Tin Plated
- Contact Material :
- Brass
- Datasheets
- L177DE09S
D Series D-Sub Receptacle, Female Sockets 9-Position Signal Solder Cup 1 DE E Free Hanging (In-Line) Brass Gold Steel, Tin Plated
L177DE09S Overview
The product is packaged in Receptacle, Female Sockets.Free Hanging (In-Line) is the mounting type.Packaging for the product is carried out via a Bulk case.As a product of the D Series, it can be found in this category.In this case, Free Hanging, Panel mounts the part.The device is operating at -55°C~125°C Operating Temperature.
L177DE09S Features
D series
L177DE09S Applications
There are a lot of Amphenol ICC (Commercial Products)
L177DE09S D-Sub Connectors applications.
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
- Blowers
- Control panels
- Electrical substations
- Energy efficient lighting (LED)
- LED municipal outdoor and street lighting
