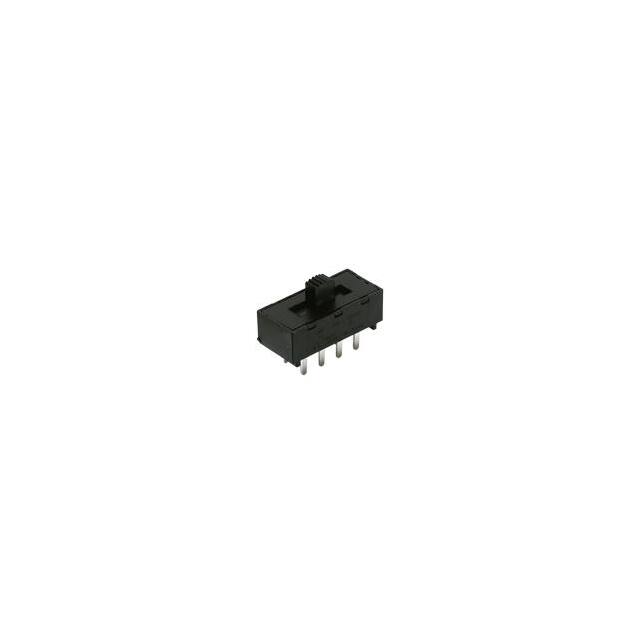

L202011SS02QE

Manufacturer :

C&K

Product Category :

Actuator Material :

Polyamide (PA66), Nylon 6/6

Published :

2002

Series :

L

Current Rating (Amps) :

4A AC/DC

Mount :

Panel, Through Hole

Orientation :

Straight

Actuator Length :

5.08mm

Max Current Rating :

4A

Voltage - Rated AC :

125V

Max Voltage Rating (AC) :

250V

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Termination Style :

PC Pin

Depth :

10.6mm

Actuator Type :

Standard

RoHS Status :

ROHS3 Compliant

Contact Finish :

Silver

Circuit :

DPDT

Contact Material :

Copper

Current Rating :

4A

Factory Lead Time :

14 Weeks

Length :

30.48mm

Switch Travel :

3.81mm

Min Operating Temperature :

-30°C

Max Operating Temperature :

65°C

Contact Timing :

NOT SPECIFIED

Throw Configuration :

DPDT

Housing Material :

Nylon

Packaging :

Bulk

Electrical Life :

10,000 Cycles

Termination :

PC Pins

Contact Plating :

Silver

Mounting Type :

Panel Mount

Feature :

Epoxy Sealed Terminals

Operating Temperature :

-30°C~65°C

Switch Function :

On-On

Voltage - Rated DC :

28V

Max Voltage Rating (DC) :

125V
