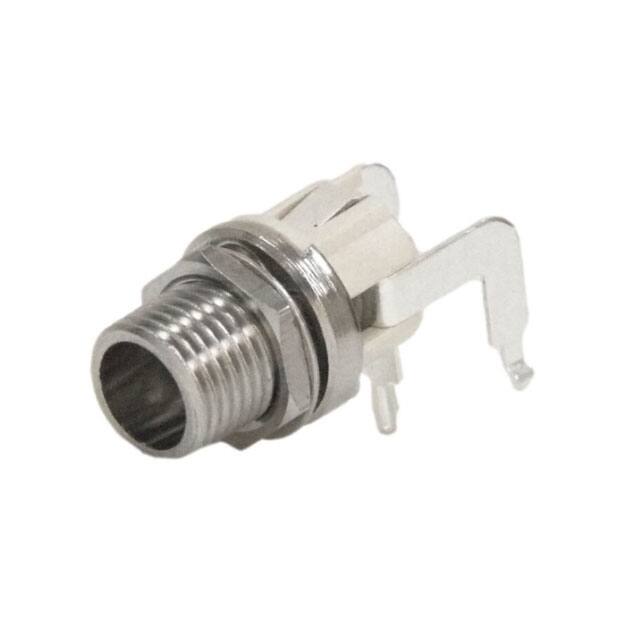

L712RAHLP

Manufacturer :

Switchcraft / Conxall

Product Category :

Power Connectors

Mounting Feature :

Bulkhead - Front Side Nut

Number of Positions/Contacts :

2 Conductors, 3 Contacts

Mounting Angle :

RIGHT ANGLE

Mating Length/Depth :

0.472 (12.00mm)

Internal Switch(s) :

Single Switch, Normally Closed

Package :

Bulk

RoHS :

Details

Body Material :

COPPER ALLOY

Mounting Style :

Panel

Inside Contact Diameter :

2.5 mm

Body Color :

Silver

Termination Style :

Solder Lug

Connector Type :

JACK

Operating Temperature :

-40°C ~ 105°C

ECCN :

EAR99

Minimum Operating Temperature :

- 40 C

Itar Registered :

Unavailable

Series :

LP

Ingress Protection :

-

Contact Plating :

Nickel

Contact Material - Plating :

Silver

Voltage Rating :

24 VDC

IP Rating :

-

Current Rating (Amps) :

7.5 A

Insulation Resistance :

10000 MOhms

Termination :

Solder

Mounting Type :

Panel Mount, Through Hole, Right Angle

Housing Material :

Thermoplastic (TP)

Contact Gender :

Pin (Male)

Gender :

Male

Thread Size :

5/16-32

Voltage - Rated :

12VDC

Current Rating :

7.5 A

Insulation Color :

-

Shielding :

Unshielded

Outside Contact Diameter :

5.5 mm

Product :

Jacks

Maximum Operating Temperature :

+ 105 C

Contact Material :

COPPER ALLOY

Industry Recognized Mating Diameter :

2.50mm ID (0.098), 5.50mm OD (0.217)

Packaging :

Bulk

Material Flammability Rating :

-

Features :

Mounting Hardware, Thread Lock

Includes :

-

Actual Diameter :

-

Product Status :

Active
