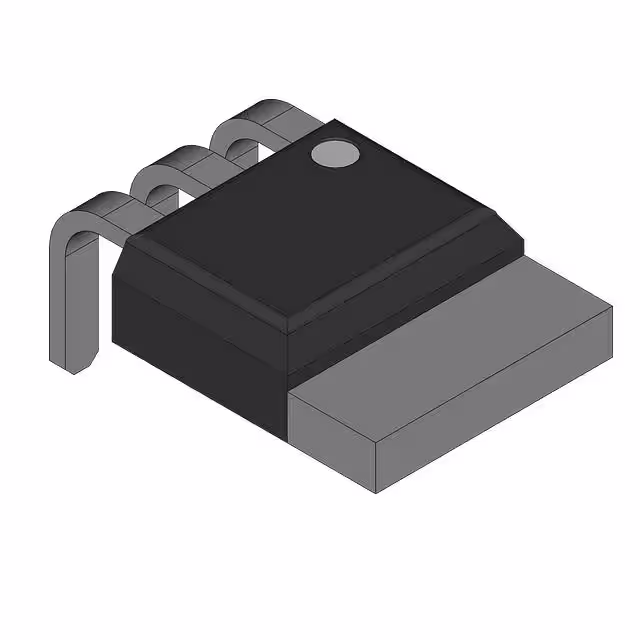

L88M05TLL-E

Manufacturer :

Sanyo

Product Category :

Voltage Regulators - Linear

Operating Temperature (Max) :

85°C

Operating Temperature (Min) :

-20°C

Terminal Pitch :

2.6mm

Dropout Voltage1-Max :

0.6V

Terminal Finish :

Tin/Bismuth (Sn/Bi)

Terminal Position :

Single

Regulator Type :

FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR

Output Current1-Max :

0.5A

Number of Outputs :

1

JESD-30 Code :

R-PSIP-T3

Number of Terminations :

3

Operating Temperature TJ-Min :

-25°C

Packing Method :

Bulk Pack

RoHS Status :

RoHS Compliant

Output Voltage1-Max :

5.15V

Load Regulation-Max(%) :

0.1%

Input Voltage (Max) :

17V

Number of Functions :

1

JESD-609 Code :

e6

Length :

6.5mm

Surface Mount :

No

Line Regulation-Max (%/V) :

0.05%

Operating Temperature TJ-Max :

125°C

Pbfree Code :

yes

Input Voltage (Min) :

5.8V

Lead Free :

Lead Free

Voltage Tolerance-Max :

3%

Width :

2.3mm

ECCN Code :

EAR99

Output Voltage1-Min :

4.85V

Output Voltage 1 :

5V

Input Voltage Absolute-Max :

18V

Terminal Form :

THROUGH-HOLE

Adjustability :

FIXED

Lifecycle Status :

OBSOLETE (Last Updated: 1 week ago)

Dropout Voltage1-Nom :

0.4V

Qualification Status :

Not Qualified

HTS Code :

8542.39.00.01
