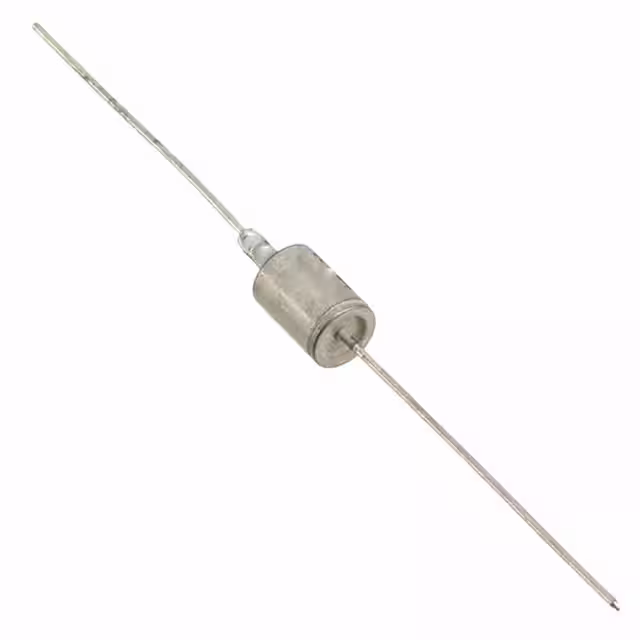

LC13/TR

Manufacturer :

Microchip Technology

Product Category :

Brand :

Microchip Technology

Product Type :

TVS Diodes

Supplier Device Package :

DO-202AA (DO-13)

Current Rating :

5 uA

Subcategory :

TVS Diodes / ESD Suppression Diodes

Package / Case :

DO-13

Voltage - Reverse Standoff (Typ) :

13V

Mounting Type :

Through Hole

Applications :

GENERAL PURPOSE

Number of Channels :

1 Channel

Voltage - Clamping (Max) @ Ipp :

23.8V

Current - Peak Pulse (10/1000μs) :

63A

Capacitance @ Frequency :

100pF @ 1MHz

Packaging :

Reel

Unidirectional Channels :

1

Breakdown Voltage :

14.4 V

Working Voltage :

13 V

Maximum Operating Temperature :

+ 175 C

Operating Temperature :

-65°C ~ 175°C (TJ)

Termination Style :

Axial

Voltage - Breakdown (Min) :

14.4V

Clamping Voltage :

23.8 V

Series :

-

Type :

Zener

Power Line Protection :

No

Product Status :

Active

Power - Peak Pulse :

1500W (1.5kW)

Package :

Tape and Reel (TR)

Product Category :

ESD Suppressors / TVS Diodes

Minimum Operating Temperature :

- 65 C

Polarity :

Unidirectional

Manufacturer :

Microchip

RoHS :

N
