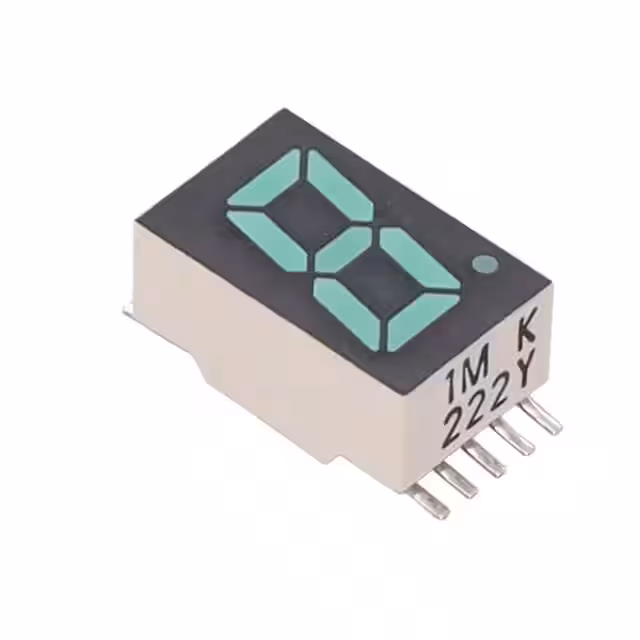

LF-3011MK

Manufacturer :

ROHM Semiconductor

Product Category :

Packaging :

Film

Type :

Module

Reverse Current :

100(uA)

Size / Dimension :

0.433 H x 0.268 W x 0.197 D (11.00mm x 6.80mm x 5.00mm)

Power Dissipation :

480(W)

Display Type :

7 Segment

Digit/Alpha Size :

0.32 (8.00mm)

Viewing Area Height (mm) :

8(mm)

Subcategory :

Displays

Series :

K

Operating Temperature Classification :

COMMERCIAL

Wavelength :

563 nm

Number of Elements :

8

Wavelength - Peak :

563nm

Character Size :

8 mm

Brand :

Rohm Semiconductor

Number of Functions :

1

Base Product Number :

LF-3011

Forward Current-Max :

0.02 A

Digit Size (in) :

0.315(in)

Pin Count :

10

Product Height (mm) :

5(mm)

Luminous Intensity :

10000ucd

Vf - Forward Voltage :

2.1 V

Peak Wavelength :

563(nm)

Emitting Color :

Green

Rad Hardened :

No

Lifecycle Status :

Production (Last Updated: 2 years ago)

Millicandela Rating :

10mcd

Product Category :

LED Displays and Accessories

Illumination Color :

Green

Product Length (mm) :

6.8(mm)

Test Current (It) :

10(mA)

Reach Compliance Code :

Compliant

Product :

LED Displays

HTS Code :

8541.40.20.00

Color :

Green

Reverse Voltage :

5(V)

Package :

Bulk

Display Height :

8 mm

Common Pin :

Common Cathode

Product Type :

LED Displays

Character Displayed :

Numeric

Mounting Style :

Through Hole

Mounting :

Surface Mount

Current - Test :

10mA

Forward Voltage :

2.8(V)

Product Status :

Active

Product Depth (mm) :

11(mm)

Voltage - Forward (Vf) (Typ) :

2.1V

Number of Characters :

1

Forward Current :

20(mA)

Minimum Operating Temperature :

- 25 C

Manufacturer :

Rohm Semiconductor

Maximum Forward Current :

20(mA)

Total Thickness :

5(mm)

Power Dissipation (Max) :

480mW

Maximum Operating Temperature :

+ 75 C

Configuration :

Common Anode

Viewing Area Length (mm) :

4(mm)

Optoelectronic Device Type :

SMART/NORMAL 7 SEG NUMERIC LED DISPLAY

RoHS :

Details

Package / Case :

10-SMD, Gull Wing
