LF13509D
Or copy the link below:
- Mfr.Part #
- LF13509D
- Manufacturer
- National Semiconductor
- Package / Case
- Datasheet
- Download
- Description
- DIFFERENTIAL MUX, 4 CHANNEL
- Stock
- 2,847
- In Stock ：
- 2,847
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- National Semiconductor
- Product Category :
- Signal Switches, Multiplexers, Decoders
- On-state Resistance Match-Nom :
- 20Ohm
- RoHS Status :
- Non-RoHS Compliant
- Peak Reflow Temperature (Cel) :
- NOT SPECIFIED
- Width :
- 7.62mm
- Supply Voltage :
- 15V
- Terminal Form :
- THROUGH-HOLE
- Neg Supply Voltage-Nom (Vsup) :
- -15V
- HTS Code :
- 8542.39.00.01
- On-State Resistance (Max) :
- 650Ohm
- Surface Mount :
- No
- JESD-30 Code :
- R-CDIP-T16
- Terminal Finish :
- Tin/Lead (Sn/Pb)
- Power Supplies :
- +-15V
- Number of Functions :
- 1
- Qualification Status :
- Not Qualified
- Operating Temperature (Max) :
- 70°C
- Terminal Pitch :
- 2.54mm
- Terminal Position :
- Dual
- JESD-609 Code :
- e0
- Number of Terminals :
- 16
- Temperature Grade :
- COMMERCIAL
- Seated Height-Max :
- 4.572mm
- Switching :
- BREAK-BEFORE-MAKE
- Analog IC - Other Type :
- DIFFERENTIAL MULTIPLEXER
- Off-state Isolation-Nom :
- 66 dB
- Number of Channels :
- 4
- Time@Peak Reflow Temperature-Max (s) :
- NOT SPECIFIED
- Datasheets

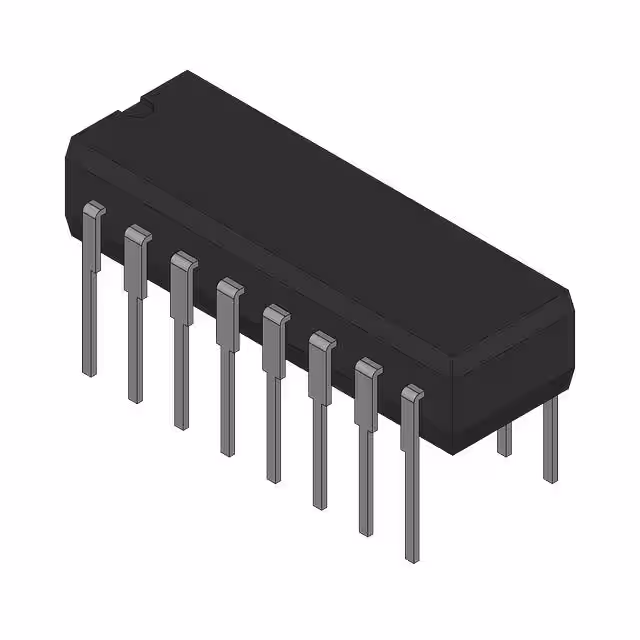

- LF13509D
[Signal Switches, Multiplexers, Decoders - National Semiconductor LF13509D] Overview
The LF13509D by National Semiconductor is a highly versatile and reliable differential multiplexer designed to meet the demands of modern electronic systems. This advanced integrated circuit offers exceptional performance and precision, making it ideal for a wide range of applications in various industries.
With its innovative design and robust construction, the LF13509D provides seamless signal switching and multiplexing capabilities, ensuring efficient data transmission and management. Whether used in telecommunications, industrial automation, or consumer electronics, this multiplexer delivers consistent and dependable performance, meeting the stringent requirements of B2B customers.
Engineered to the highest standards of quality and reliability, the LF13509D offers unparalleled flexibility and scalability, making it the preferred choice for demanding applications where precision and performance are paramount.
LF13509D Features
- Four-channel differential multiplexer
- Highly precise signal switching
- Low distortion and noise
- Wide operating voltage range
- Robust construction for enhanced durability
- Compact and space-saving design
- Compatible with a variety of electronic systems
- Easy integration and installation
- Reliable performance in harsh environments
LF13509D Applications
- Industrial Automation: The LF13509D is used in industrial control systems for signal multiplexing and switching, ensuring efficient data transmission and control in manufacturing processes.
- Telecommunications: In telecommunications networks, this multiplexer facilitates the routing of differential signals, enabling seamless communication and data exchange between different components.
- Medical Devices: Medical imaging equipment utilizes the LF13509D for signal processing and routing, ensuring accurate diagnostic results and reliable performance in critical healthcare applications.
- Test and Measurement Instruments: The LF13509D is integrated into test and measurement instruments for signal routing and switching, providing precise measurement capabilities and reliable operation in laboratory and field environments.
- Automotive Electronics: Automotive systems utilize the LF13509D for signal multiplexing and switching, enabling advanced features such as vehicle diagnostics, infotainment, and driver assistance systems.
