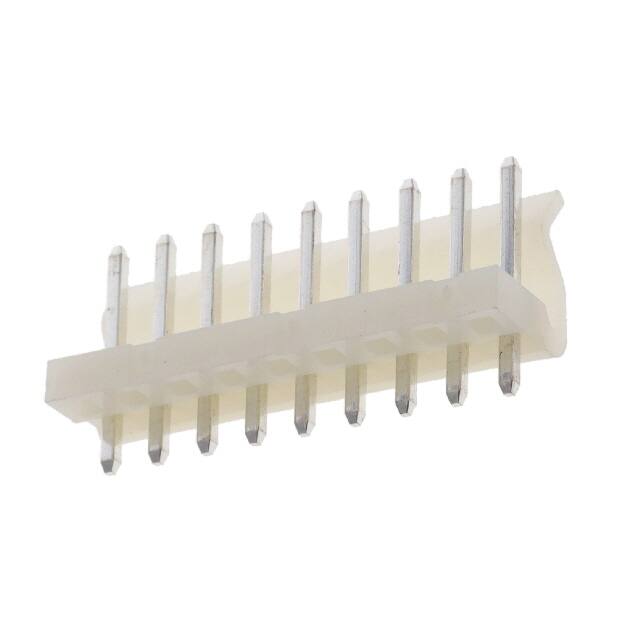

LHB-09-SA1
Or copy the link below:
- Mfr.Part #
- LHB-09-SA1
- Manufacturer
- Adam Tech
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER VERT 9POS 3.96MM
- Stock
- 2,439
- In Stock ：
- 2,439
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Adam Tech
- Product Category :
- Headers, Male Pins
- Contact Finish - Mating :
- Tin
- Factory Lead Time :
- 9 Weeks
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Insulation Height :
- 0.504 12.80mm
- Mixed Contacts :
- yes
- Number of Rows :
- 1
- Series :
- LHB
- Contact Type :
- Male Pin
- Number of Positions :
- 9
- Insulation Material :
- Polyamide (PA66), Nylon 6/6
- Body Depth :
- 0.5 inch
- Overall Contact Length :
- 0.690 17.53mm
- Contact Length - Post :
- 0.145 3.68mm
- Material Flammability Rating :
- UL94 V-2
- Contact Length - Mating :
- 0.041 1.04mm
- Contact Shape :
- Square
- Termination :
- Solder
- Contact Material :
- Brass
- Pitch - Mating :
- 0.156 3.96mm
- Fastening Type :
- Friction Lock
- Shrouding :
- Shrouded - 1 Wall
- Connector Type :
- Header
- Mounting Option 1 :
- LOCKING
- Number of Positions Loaded :
- All
- Voltage - Rated :
- 250VAC
- Reliability :
- COMMERCIAL
- Insulation Color :
- White
- RoHS Status :
- ROHS3 Compliant
- Reference Standard :
- UL, CSA
- Packaging :
- Bulk
- Current Rating (Amps) :
- 5A
- Mounting Type :
- Through Hole
- Style :
- Board to Cable/Wire
- Number of Conductors :
- ONE
- Body Breadth :
- 0.402 inch
- Operating Temperature :
- -25°C~85°C
- Datasheets
- LHB-09-SA1
LHB Series 1-Row Header Solder Brass Bulk Through Hole Tin Polyamide (PA66), Nylon 6/6 9-Position Board to Cable/Wire 0.504 12.80mm Height
LHB-09-SA1 Overview
Packaging for this item is Header.There is a mounting type of Through Hole for this device.It is necessary to use a Bulk case for packaging the product.This product is part of the LHB Series.In this case, the device operates at -25°C~85°C Operating Temperature.
LHB-09-SA1 Features
LHB series
LHB-09-SA1 Applications
There are a lot of Adam Tech
LHB-09-SA1 Rectangular Connectors applications.
- Transportation
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
