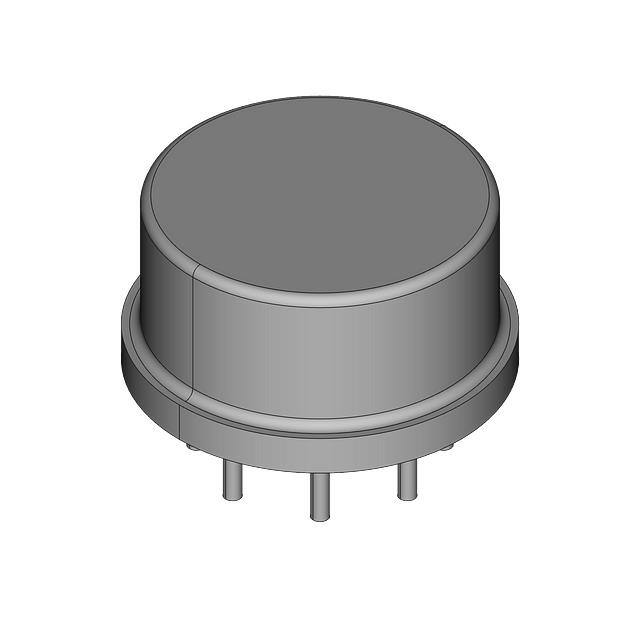

LM10CH

Manufacturer :

Texas Instruments

Product Category :

Instrumentation, OP Amps, Buffer Amps

Terminal Form :

Wire

Amplifier Type :

Operational Amplifier

Number of Functions :

1

Time@Peak Reflow Temperature-Max (s) :

NOT SPECIFIED

Frequency Compensation :

yes

Reach Compliance Code :

not_compliant

JESD-30 Code :

O-MBCY-W8

Voltage Gain-Min :

750

Package Shape :

Round

HTS Code :

8542.33.00.01

Qualification Status :

Not Qualified

Architecture :

VOLTAGE-FEEDBACK

Supply Current-Max :

0.5 mA

ECCN Code :

EAR99

Average Bias Current-Max (IIB) :

0.04 µA

Number of Terminals :

8

Factory Lead Time :

6 Weeks

Micropower :

yes

Surface Mount :

No

Neg Supply Voltage-Nom (Vsup) :

-20 V

Power :

No

Supply Voltage Limit-Max :

22.5 V

Wideband :

No

Terminal Position :

BOTTOM

Pin Count :

8

Input Offset Current-Max (IIO) :

0.0007 µA

Peak Reflow Temperature (Cel) :

NOT SPECIFIED

Brand Name :

Texas

Input Offset Voltage-Max :

5000 µV

Power Supplies :

+-20 V

Temperature Grade :

COMMERCIAL

Programmable Power :

No

Low-Offset :

No

Low-Bias :

No

Common-mode Reject Ratio-Min :

93 dB

Bias Current-Max (IIB) @25C :

0.03 µA
