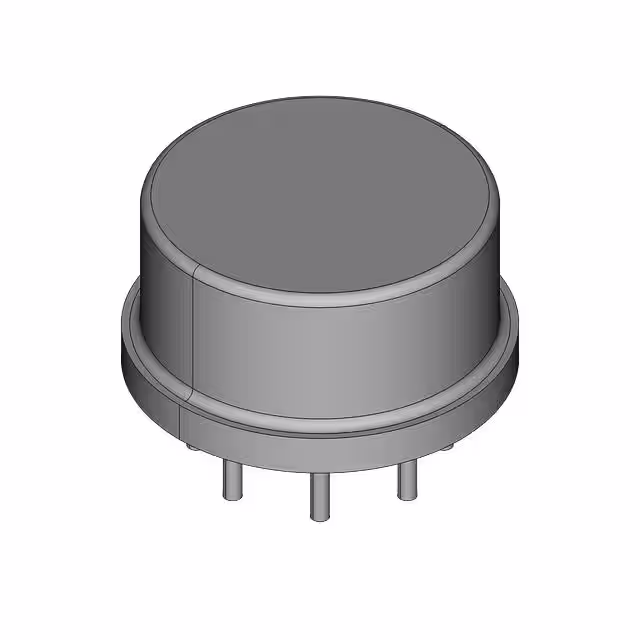

LM10CH

Manufacturer :

National Semiconductor

Product Category :

Instrumentation, OP Amps, Buffer Amps

Voltage Gain-Min :

750

HTS Code :

8542.33.00.01

Terminal Form :

Wire

Frequency Compensation :

yes

ECCN Code :

EAR99

Programmable Power :

No

Pin Count :

8

Supply Voltage Limit-Max :

22.5 V

Micropower :

yes

Factory Lead Time :

6 Weeks

Average Bias Current-Max (IIB) :

0.04 µA

Package Shape :

Round

Neg Supply Voltage-Nom (Vsup) :

-20 V

Low-Bias :

No

Number of Terminals :

8

Temperature Grade :

COMMERCIAL

Input Offset Voltage-Max :

5000 µV

Wideband :

No

Peak Reflow Temperature (Cel) :

NOT SPECIFIED

Power Supplies :

+-20 V

Number of Functions :

1

Low-Offset :

No

Amplifier Type :

Operational Amplifier

Time@Peak Reflow Temperature-Max (s) :

NOT SPECIFIED

Input Offset Current-Max (IIO) :

0.0007 µA

Reach Compliance Code :

not_compliant

JESD-30 Code :

O-MBCY-W8

Common-mode Reject Ratio-Min :

93 dB

Brand Name :

Texas

Architecture :

VOLTAGE-FEEDBACK

Terminal Position :

BOTTOM

Bias Current-Max (IIB) @25C :

0.03 µA

Power :

No

Surface Mount :

No

Supply Current-Max :

0.5 mA

Qualification Status :

Not Qualified
