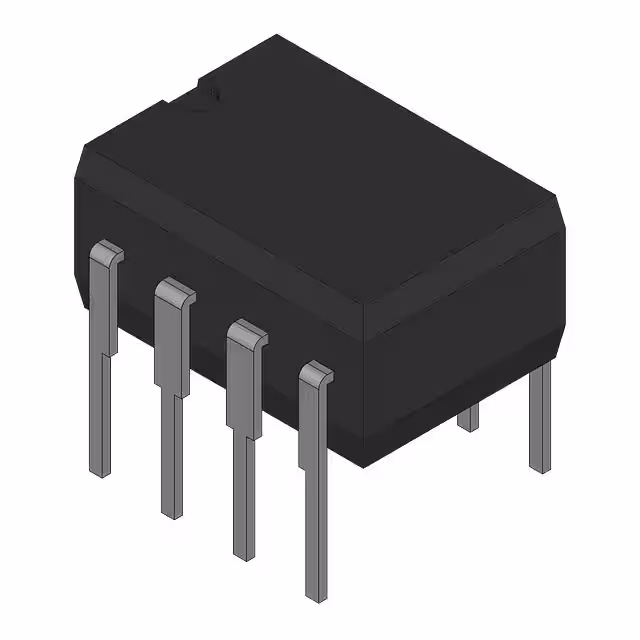

LM158AJGB

Manufacturer :

Texas Instruments

Product Category :

Instrumentation, OP Amps, Buffer Amps

Length :

9.6mm

Lifecycle Status :

ACTIVE (Last Updated: 1 day ago)

Thickness :

4.57mm

Power Supplies :

+-1.5/+-15/3/30V

Radiation Hardening :

No

Min Supply Voltage :

3V

Number of Terminations :

8

Max Dual Supply Voltage :

16V

Mount :

Through Hole

Low-Offset :

No

Lead Free :

Contains Lead

Amplifier Type :

Operational Amplifier

Min Dual Supply Voltage :

1.5V

Height :

5.08mm

Max Supply Voltage :

32V

Unity Gain BW-Nom :

700 kHz

Package / Case :

CDIP

Packaging :

Bulk

Supply Voltage :

5V

Terminal Position :

Dual

Input Offset Current-Max (IIO) :

0.01μA

RoHS Status :

RoHS Compliant

Architecture :

VOLTAGE-FEEDBACK

Common Mode Rejection Ratio :

70 dB

Min Operating Temperature :

-55°C

Current - Input Bias :

50nA

Input Offset Voltage (Vos) :

2mV

Frequency Compensation :

yes

Low-Bias :

No

Bias Current-Max (IIB) @25C :

0.05μA

Gain Bandwidth Product :

700 kHz

ECCN Code :

EAR99

Packing Method :

Tube

Max Operating Temperature :

125°C

Wideband :

No

Number of Functions :

2

Number of Channels :

2

Width :

6.67mm

Voltage Gain :

100dB

Average Bias Current-Max (IIB) :

0.1μA

Power :

No

Temperature Grade :

Military

Slew Rate :

0.3 V/µs

Programmable Power :

No

Micropower :

No

Pin Count :

8

Number of Pins :

8
