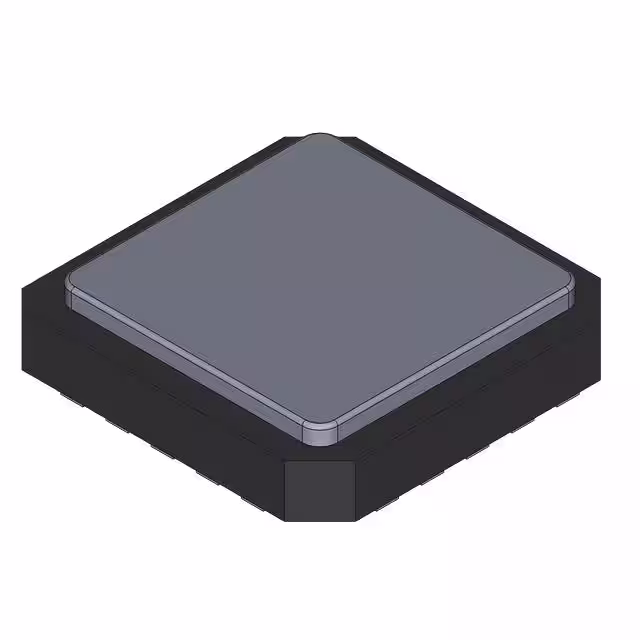

LM193FK

Manufacturer :

Texas Instruments

Product Category :

Comparators

Bias Current-Max (IIB) @25C :

0.1μA

Power Supplies :

5V

Input Offset Voltage-Max :

9000μV

HTS Code :

8542.39.00.01

Average Bias Current-Max (IIB) :

0.3μA

Terminal Pitch :

1.27mm

Amplifier Type :

Comparator

RoHS Status :

Non-RoHS Compliant

Length :

8.89mm

Supply Current-Max :

2.5mA

Operating Temperature (Min) :

-55°C

Terminal Position :

QUAD

Pin Count :

20

Output Type :

OPEN-COLLECTOR

Supply Voltage Limit-Max :

36V

Number of Terminations :

20

Width :

8.89mm

Number of Functions :

2

Height Seated (Max) :

2.03mm

Qualification Status :

Not Qualified

Response Time :

1300 ns

Supply Voltage :

5V

Surface Mount :

yes

JESD-30 Code :

S-CQCC-N20

Operating Temperature (Max) :

125°C

ECCN Code :

EAR99

Temperature Grade :

Military

Terminal Form :

NO LEAD
