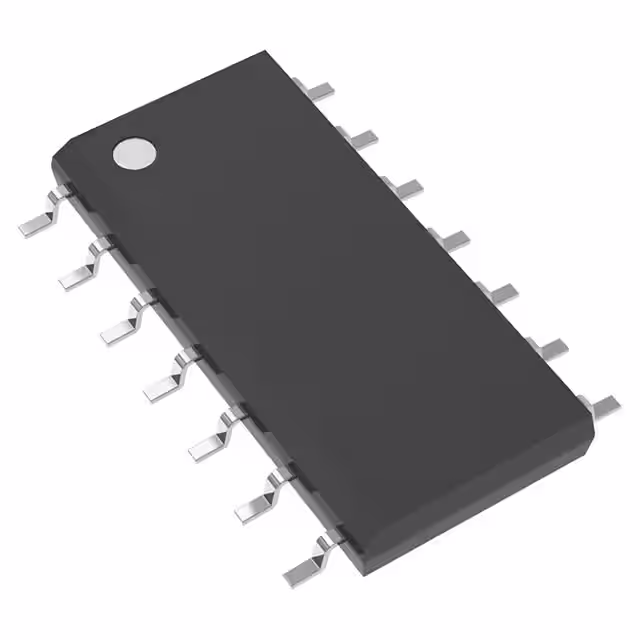

LM224M

Manufacturer :

onsemi

Product Category :

Instrumentation, OP Amps, Buffer Amps

Time@Peak Reflow Temperature-Max (s) :

NOT SPECIFIED

RoHS Status :

RoHS Compliant

Terminal Form :

Gull wing

Reach Compliance Code :

Unknown

Length :

8.56mm

Supply Voltage :

5V

Common Mode Rejection Ratio :

70 dB

Output Current per Channel :

40mA

Package / Case :

SOIC

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Terminal Finish :

Matte Tin (Sn)

Peak Reflow Temperature (Cel) :

260

Current - Input Bias :

150nA

Low-Offset :

No

Height Seated (Max) :

1.8mm

Max Supply Voltage :

32V

Terminal Position :

Dual

Width :

3.95mm

Average Bias Current-Max (IIB) :

0.3μA

Min Supply Voltage :

3V

Frequency Compensation :

yes

Number of Terminations :

14

JESD-609 Code :

e3

Power Dissipation :

640mW

Operating Supply Current :

1mA

Amplifier Type :

Operational Amplifier

Number of Functions :

4

Nominal Supply Current :

1.2mA

Min Dual Supply Voltage :

1.5V

Number of Elements :

4

Min Operating Temperature :

-25°C

ECCN Code :

EAR99

Lead Free :

Lead Free

Operating Supply Voltage :

15V

Mount :

Surface Mount

Qualification Status :

Not Qualified

Voltage Gain :

100dB

Number of Pins :

14

Bias Current-Max (IIB) @25C :

0.15μA

Temperature Grade :

Other

Micropower :

yes

Pin Count :

14

Max Dual Supply Voltage :

16V

Max Operating Temperature :

85°C

Slew Rate :

0.4 V/µs

Architecture :

VOLTAGE-FEEDBACK

Terminal Pitch :

1.27mm

Power Supply Rejection Ratio (PSRR) :

65dB

Input Offset Voltage (Vos) :

5mV
