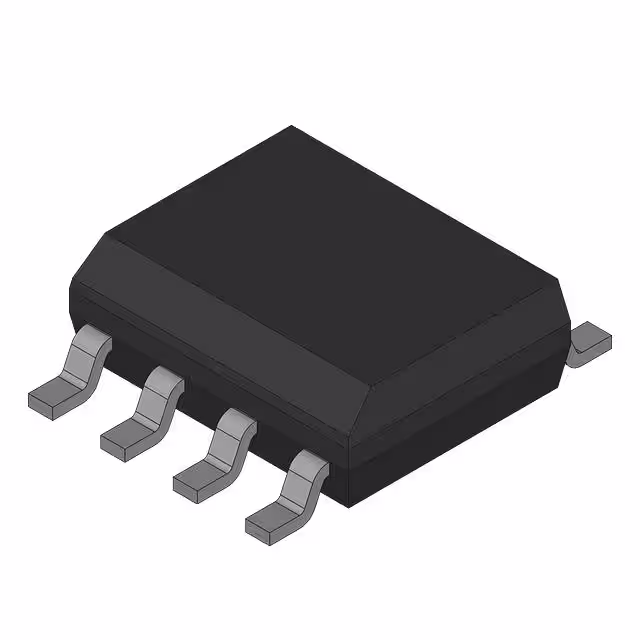

LM4808M

Manufacturer :

National Semiconductor

Product Category :

Audio Amplifiers

Supply Voltage-Max (Vsup) :

5.5V

ECCN Code :

EAR99

Number of Channels :

2

Pin Count :

8

Number of Functions :

1

Seated Height-Max :

1.75mm

Qualification Status :

Not Qualified

RoHS Status :

Non-RoHS Compliant

Power Supplies :

2/5.5V

Pbfree Code :

No

Temperature Grade :

Industrial

Length :

4.9mm

Terminal Position :

Dual

Number of Terminals :

8

JESD-30 Code :

R-PDSO-G8

Output Power :

0.15W

Bandwidth :

20 kHz

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

JESD-609 Code :

e0

Terminal Finish :

Tin/Lead (Sn/Pb)

Peak Reflow Temperature (Cel) :

235

Time@Peak Reflow Temperature-Max (s) :

NOT SPECIFIED

Supply Current-Max :

3mA

Terminal Form :

Gull wing

HTS Code :

8542.33.00.01

Surface Mount :

yes

Width :

3.9mm

Supply Voltage-Min (Vsup) :

2V

Operating Temperature (Max) :

85°C

Terminal Pitch :

1.27mm

Operating Temperature (Min) :

-40°C

Reach Compliance Code :

not_compliant

Consumer IC Type :

AUDIO AMPLIFIER
