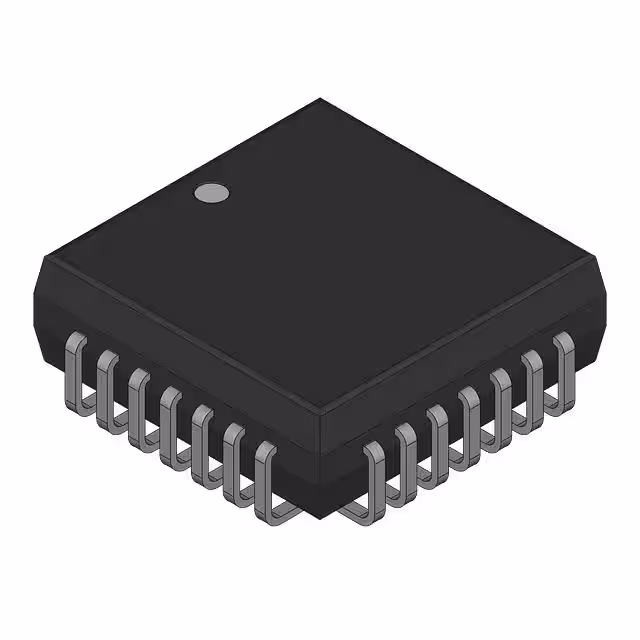

LMC1983CIV

Manufacturer :

National Semiconductor

Product Category :

Audio Special Purpose

Qualification Status :

Not Qualified

JESD-609 Code :

e0

Consumer IC Type :

TONE CONTROL CIRCUIT

Operating Temperature (Max) :

85°C

Terminal Position :

QUAD

Supply Current-Max :

25mA

Terminal Form :

J BEND

Width :

11.43mm

Surface Mount :

yes

JESD-30 Code :

S-PQCC-J28

RoHS Status :

Non-RoHS Compliant

Number of Functions :

1

Number of Terminals :

28

HTS Code :

8542.39.00.01

Power Supplies :

9V

ECCN Code :

EAR99

Supply Voltage-Min (Vsup) :

6V

Terminal Pitch :

1.27mm

Channel Separation :

80 dB

Temperature Grade :

Industrial

Terminal Finish :

Tin/Lead (Sn/Pb)

Peak Reflow Temperature (Cel) :

NOT SPECIFIED

Number of Channels :

2

Length :

11.43mm

Seated Height-Max :

4.57mm

Supply Voltage-Max (Vsup) :

12V

Time@Peak Reflow Temperature-Max (s) :

NOT SPECIFIED

Harmonic Distortion :

0.5%

Number of Bands :

2

Operating Temperature (Min) :

-40°C
