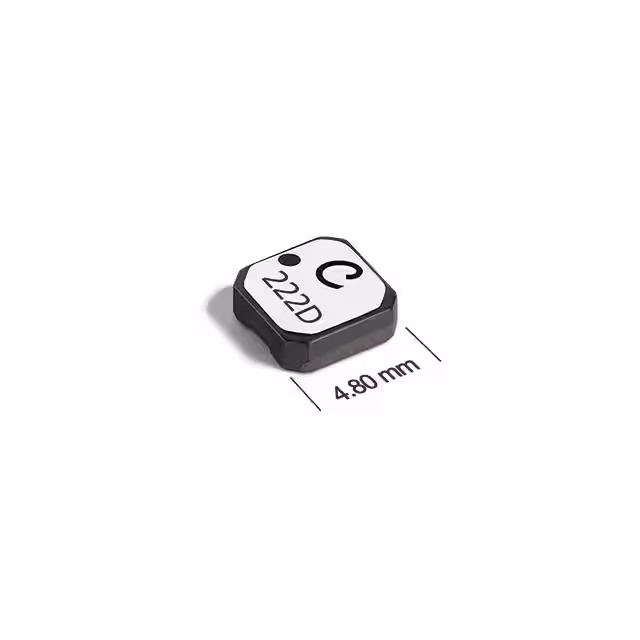

LPS5015-474MRC

Manufacturer :

COILCRAFT

Product Category :

Fixed Inductors

Terminal Finish :

Matte Tin (Sn) - with Nickel (Ni) barrier

Product Width :

4.8mm

Case/Size Code :

1919

Material - Core :

Ferrite

RoHS :

Details

Packing Method :

TR, 7 INCH

Package / Case :

5 mm x 1.5 mm x 5 mm

Core Type :

Drum

Height :

1.5 mm

Inductance-Nom (L) :

470 µH

Supplier Device Package :

-

Width :

5 mm

Package Length :

4.93 mm

Reach Compliance Code :

Compliant

Current - Saturation (Isat) :

120mA

Product Type :

Fixed Inductors

DC Resistance (DCR) :

7.5Ohm Max

Shape/Size Description :

RECTANGULAR PACKAGE

Q @ Freq :

-

Height - Seated (Max) :

0.059 (1.50mm)

DC Resistance :

7.5 Ω

Diameter :

-

Frequency - Self Resonant :

4.9MHz

Tolerance :

20 %

Size / Dimension :

0.197 L x 0.197 W (5.00mm x 5.00mm)

Surface Mount :

yes

ECCN Code :

EAR99

Core Material :

Ferrite

Rated Current-Max :

0.21 A

Product Height :

1.4mm

Length :

5 mm

Brand :

Coilcraft

HTS Code :

8504.50.80.00

Package Height :

1.4 mm

Product Length :

4.8mm

Inductor Type :

GENERAL PURPOSE INDUCTOR

Terminal Placement :

DUAL ENDED

Minimum Operating Temperature :

- 40 C

Inductor Application :

POWER INDUCTOR

Product :

Power Inductors

Shielded :

yes

RMS Current (Irms) :

160mA

Termination Style :

SMD/SMT

Packaging :

Reel

Package :

Strip

Inductance Frequency - Test :

100 kHz

Termination :

Standard

Package Width :

4.93 mm

Mounting Type :

Surface Mount

Manufacturer :

Coilcraft

Shielding :

Shielded

Operating Temperature :

-40°C ~ 125°C

Self Resonant Frequency :

4.9 MHz

Subcategory :

Inductors, Chokes and Coils

Inductance Tolerance :

± 20%

Terminal Shape :

ONE SURFACE

Product Category :

Power Inductors - SMD

Product Status :

Active

JESD-609 Code :

e3

Features :

-

Current Rating (Amps) :

160 mA

Pbfree Code :

yes

Number of Terminals :

2

Series :

LPS5015

Application :

Power

Ratings :

-

Test Frequency :

100 kHz

Maximum Operating Temperature :

+ 85 C

Number of Functions :

1

Saturation Current :

130 mA

Construction :

Shielded

Mounting Style :

PCB Mount

Type :

Wirewound

Inductance :

470μH
