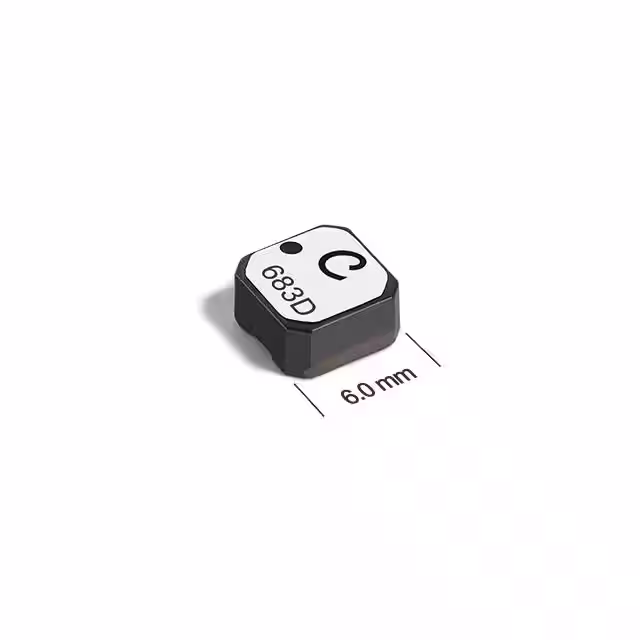

LPS6235-684MRC

Manufacturer :

COILCRAFT

Product Category :

Fixed Inductors

Height :

3.5 mm

Reference Standard :

AEC-Q200

Brand :

Coilcraft

Termination :

Standard

Package Width :

6 mm

Inductance :

680μH

DC Resistance (DCR) :

2.2Ohm Max

Shielding :

Shielded

Minimum Operating Temperature :

- 40 C

Type :

DRUM CORE

Shape/Size Description :

RECTANGULAR PACKAGE

Termination Style :

SMD/SMT

Maximum Operating Temperature :

+ 85 C

Series :

LPS6235

Package Height :

3.5 mm

Inductance Frequency - Test :

100 kHz

ECCN Code :

EAR99

Terminal Shape :

WRAPAROUND

Product :

Power Inductors

Package :

Strip

Surface Mount :

yes

Product Category :

Power Inductors - SMD

Packaging :

MouseReel

Mounting Type :

Surface Mount

Features :

-

Terminal Placement :

DUAL ENDED

Test Frequency :

100 kHz

RoHS :

Details

Manufacturer :

Coilcraft

Terminal Finish :

Matte Tin (Sn) - with Nickel (Ni) barrier

Subcategory :

Inductors, Chokes and Coils

Product Height :

3.5mm

Shielded :

yes

Package / Case :

2424 (6060 Metric)

Inductance-Nom (L) :

680 µH

Core Type :

Drum

Reach Compliance Code :

Compliant

Current Rating (Amps) :

280 mA

DC Resistance :

2.2 Ω

Application :

Automotive

Inductor Application :

POWER INDUCTOR

Qualification :

AEC-Q200

Self Resonant Frequency :

2.8 MHz

Tolerance :

20 %

Product Status :

Active

Product Width :

6mm

JESD-609 Code :

e3

RMS Current (Irms) :

280mA

Package Length :

6 mm

Number of Terminals :

2

Number of Functions :

1

Core Material :

Ferrite

Frequency - Self Resonant :

2.8MHz

Mounting Style :

PCB Mount

Width :

6 mm

Product Length :

6mm

Saturation Current :

210 mA

HTS Code :

8504.50.80.00

Construction :

RECTANGULAR

Packing Method :

TR, Embossed Plastic, 7 Inch

Supplier Device Package :

2424

Case/Size Code :

2424

Pbfree Code :

yes

Inductance Tolerance :

± 20%

Height - Seated (Max) :

0.138 (3.50mm)

Length :

6 mm

Size / Dimension :

0.244 L x 0.244 W (6.20mm x 6.20mm)

Inductor Type :

GENERAL PURPOSE INDUCTOR

Q @ Freq :

-

Operating Temperature :

-40°C ~ 125°C

Product Type :

Fixed Inductors

Material - Core :

Ferrite

Current - Saturation (Isat) :

170mA

Ratings :

AEC-Q200

Rated Current-Max :

0.37 A
