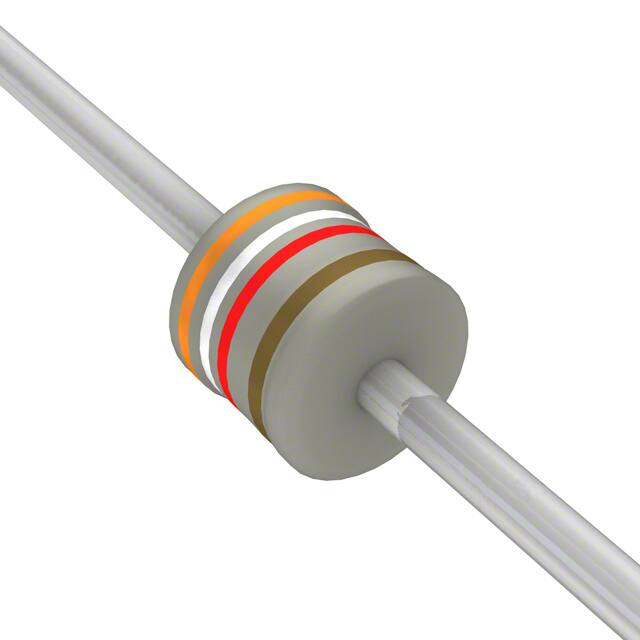

LR0204F3K9

Manufacturer :

TE Connectivity AMP Connectors

Product Category :

Through Hole Resistors

Lead Spacing (nom) :

Not Required(mm)

Power Rating(s) :

0.25 (1/4)(W)

Case Style :

Conformal Coated

Additional Feature :

PRECISION

Height - Seated (Max) :

--

Resistor Type :

GENERAL PURPOSE

Surface Mount :

No

Terminal Finish :

Tin (Sn)

Maximum Operating Temperature :

+ 155 C

Product Width :

-

Temperature Coefficient :

100.0000 ppm/°C

Reach Compliance Code :

Compliant

Series :

LR, Neohm

Package :

Tape and Box (TB)

Tolerance :

±1%

Plating :

Galvanic Tin

Wire Size :

22 AWG

Product Category :

Metal Film Resistors - Through Hole

Features :

--

Manufacturer :

TE Connectivity

Technology :

Metal Film

Termination Style :

Axial

Resistance Tolerance :

1

Length :

3.5 mm

Operating Temperature :

-55°C ~ 155°C

Rated Power Dissipation (P) :

0.25 W

Resistance :

3.9 kOhm

Composition :

Metal Film

Minimum Operating Temperature :

- 55 C

Subcategory :

Resistors

Brand :

TE Connectivity / Holsworthy

Rated Temperature :

70 °C

Size / Dimension :

0.079 Dia x 0.138 L (2.00mm x 3.50mm)

Operating Temp Range :

-55C to 155C

Number of Terminals :

2

Package / Case :

Axial

Failure Rate :

Not Required

Product Type :

Metal Film Resistors

ECCN Code :

EAR99

Number of Terminations :

2

Power Rating :

0.25 W

Package Length :

3.5 mm

Product Depth (mm) :

Not Required(mm)

Power (Watts) :

0.25W, 1/4W

Product Length (mm) :

3.2(mm)

Product Length :

10 mm

JESD-609 Code :

e3

Supplier Device Package :

Axial

Construction :

Cylindrical

Mounting Style :

PCB Mount

Flame-Proof Support :

No

Type :

Metal Film

Package Shape :

TUBULAR PACKAGE

Factory Lead Time :

15 Weeks, 6 Days

Lead Diameter :

0.45 mm

Terminal Shape :

Wire

Qualification :

-

Voltage Rating :

200V

Diameter :

2 mm

Tolerance (+ or -) :

1%

Military Standard :

Not Required

Working Voltage :

200 V

Packaging :

Ammo

Product Height (mm) :

Not Required(mm)

Packing Method :

Ammo Pack

Pbfree Code :

yes

Product Diameter (mm) :

1.7(mm)

Product Status :

Active

Mounting Feature :

THROUGH HOLE MOUNT
