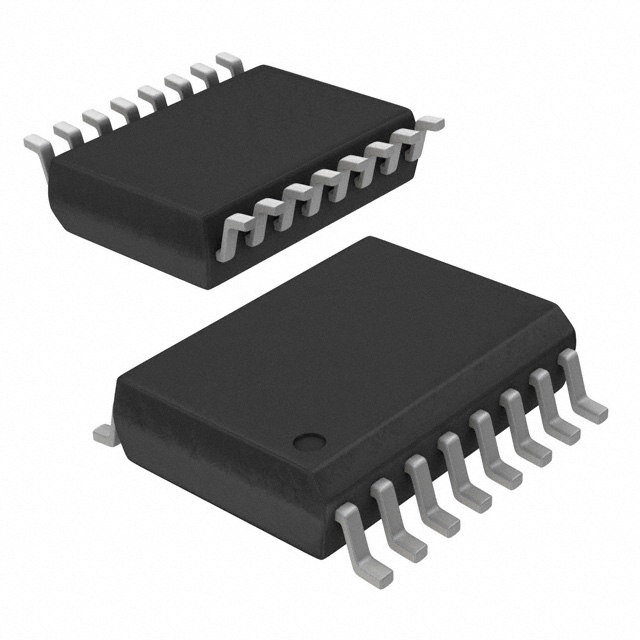

LT1204CSW#PBF
Or copy the link below:
- Mfr.Part #
- LT1204CSW#PBF
- Manufacturer
- Analog Devices, Inc.
- Package / Case
- 16-SOIC (0.295, 7.50mm Width)
- Datasheet
- Download
- Description
- IC AMP MPLEX AMP 16SOIC
- Stock
- 13
- In Stock ：
- 13
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Analog Devices, Inc.
- Product Category :
- Video Amps and Modules
- Supplier Device Package :
- 16-SO
- Dual Supply Voltage :
- +/- 5 V to +/- 15 V
- Supply Type :
- Dual Supply
- JESD-30 Code :
- R-PDSO-G16
- Signal Current-Max :
- 0.05 A
- Operating Supply Voltage :
- 5 V to 15 V
- Terminal Position :
- Dual
- Analog IC - Other Type :
- VIDEO MULTIPLEXER
- Number of Functions :
- 1
- Number of Circuits :
- 1
- Mounting Style :
- SMD/SMT
- Maximum Operating Temperature :
- + 70 C
- Applications :
- 4:1 Multiplexer-Amplifier
- Packaging :
- Tube
- Voltage - Supply, Single/Dual (±) :
- 10V ~ 30V, ±5V ~ 15V
- Power Supplies :
- +-5/+-15 V
- Qualification Status :
- Not Qualified
- Length :
- 10.2995 mm
- Current - Supply :
- 19 mA
- Brand Name :
- Linear Technology
- Supply Current-Max (Isup) :
- 24 mA
- ECCN Code :
- EAR99
- Width :
- 7.493 mm
- JESD-609 Code :
- e3
- Product Type :
- Video Switch ICs
- Configuration :
- 4 x SPST
- Surface Mount :
- yes
- Switch-on Time-Max :
- 240 ns
- Number of Switches :
- 4 Switch
- Peak Reflow Temperature (Cel) :
- 260
- ELV :
- Not Applicable
- Number of Terminals :
- 16
- Minimum Operating Temperature :
- 0 C
- Manufacturer :
- Analog Devices Inc.
- Product Category :
- Video Switch ICs
- Brand :
- Analog Devices
- Mounting Type :
- Surface Mount
- Slew Rate :
- 1000V/µs
- Package Shape :
- RECTANGULAR
- RoHS :
- Non-Compliant
- HTS Code :
- 8542.39.00.01
- -3db Bandwidth :
- 75 MHz
- Product Status :
- Active
- Product :
- Video Multiplexers
- Output Type :
- -
- Terminal Form :
- Gull wing
- Reach Compliance Code :
- Compliant
- Terminal Pitch :
- 1.27 mm
- Pin Count :
- 16
- Temperature Grade :
- COMMERCIAL
- Current - Output / Channel :
- 125 mA
- Package :
- Tube
- Series :
- -
- Subcategory :
- Switch ICs
- Terminal Finish :
- Matte Tin (Sn)
- Seated Height-Max :
- 2.642 mm
- Number of Channels :
- 1 Channel
- Bandwidth :
- 75 MHz
- Package / Case :
- 16-SOIC (0.295, 7.50mm Width)
- Base Product Number :
- LT1204
- Datasheets
- LT1204CSW#PBF
Video Amps and Modules Analog Devices, Inc. LT1204CSW#PBF Overview
