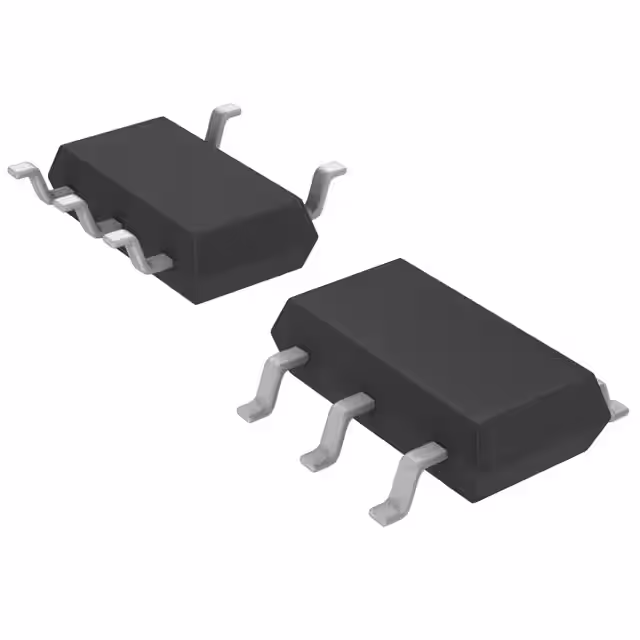

LT1800CS5#TRM
Or copy the link below:
- Mfr.Part #
- LT1800CS5#TRM
- Manufacturer
- Analog Devices, Inc.
- Package / Case
- SOT-23-5
- Datasheet
- Download
- Description
- IC OPAMP GP 1 CIRCUIT TSOT23-5
- Stock
- 31,475
- In Stock ：
- 31,475
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Analog Devices, Inc.
- Product Category :
- Instrumentation, OP Amps, Buffer Amps
- Min Operating Temperature :
- 0°C
- Max Dual Supply Voltage :
- 6.3V
- Package / Case :
- SOT-23-5
- Number of Pins :
- 5
- Output Current per Channel :
- 50mA
- Number of Channels :
- 1
- Current - Input Bias :
- 400nA
- Common Mode Rejection Ratio :
- 85 dB
- Input Offset Voltage (Vos) :
- 350µV
- Slew Rate :
- 25 V/µs
- Number of Circuits :
- 1
- Power Supply Rejection Ratio (PSRR) :
- 80dB
- Voltage Gain :
- 98.59dB
- RoHS Status :
- RoHS Compliant
- Min Dual Supply Voltage :
- 1.15V
- Nominal Gain Bandwidth Product :
- 80MHz
- Packaging :
- Cut Tape
- Operating Supply Current :
- 1.8mA
- Max Supply Voltage :
- 12.6V
- Lead Free :
- Contains Lead
- Min Supply Voltage :
- 2.3V
- Number of Elements :
- 1
- Max Operating Temperature :
- 70°C
- Gain Bandwidth Product :
- 70MHz
- Datasheets
- LT1800CS5#TRM
1 Channels 50mA per Channel 400nA 85 dB Instrumentational OP Amps SOT-23-5
LT1800CS5#TRM Overview
Op amp is packaged in SOT-23-5 case. Instrumentation amplifier is delivered in a Cut Tape case. Linear amplifier includes 5 pins. Regarding input offset voltage, buffer amplifier rates 350μV voltage. Operational amplifier can operate supply current at 1.8mA. The voltage gain should stay at 98.59dB. There are 1 circuits on op amps. Instrumentation amplifier has 1 channels on it. It should not lower than 0°C to operate buffer amplifier. It is recommended that op amp be used at temperatures below 70°C. Op amp has total of 1 elements. With regard tp supply voltage, op amp is used under 12.6V. To keep the buffer amps' supply voltage higher than 2.3V. Conduct linear amplifier under the dual suuply voltage of 6.3V.
