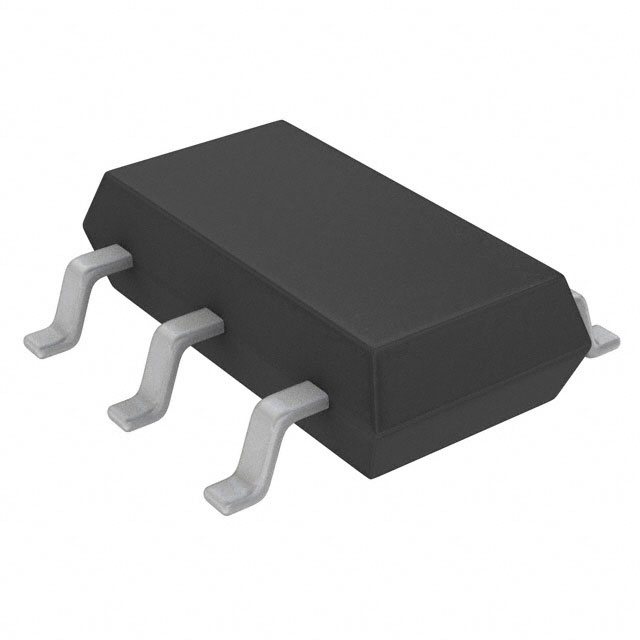

LT6200CS6-10#TRMPBF

Manufacturer :

Analog Devices, Inc.

Product Category :

Instrumentation, OP Amps, Buffer Amps

Average Bias Current-Max (IIB) :

18 µA

Subcategory :

Operational Amplifier

Package :

Tape and Reel (TR);Cut Tape (CT);Digi-Reel®;

Number of Functions :

1

Brand Name :

Analog Devices Inc

Technology :

Bipolar

Minimum Operating Temperature :

0 C

Reach Compliance Code :

Compliant

Max Dual Supply Voltage :

6.3 V

Neg Supply Voltage-Nom (Vsup) :

-5 V

Amplifier Type :

GENERAL PURPOSE

Terminal Position :

Dual

Base Product Number :

LT6200

Input Offset Voltage-Max :

7500 µV

Min Operating Temperature :

0 °C

Maximum Operating Temperature :

+ 70 C

RoHS :

Compliant

Peak Reflow Temperature (Cel) :

260

Package / Case :

SOT-23-6 Thin, TSOT-23-6

Output Type :

Rail-to-Rail

Nominal Gain Bandwidth Product :

1.45 GHz

Manufacturer Lifecycle Status :

Production (Last Updated: 3 weeks ago)

Common Mode Rejection Ratio :

65 dB

Terminal Finish :

MATTE TIN

Voltage - Input Offset :

2.5 mV

Surface Mount :

yes

Voltage Gain dB :

-

Manufacturer :

Analog Devices Inc

Number of Circuits :

1

Voltage Gain :

101.58 dB

Current - Supply :

20mA

Power Supply Rejection Ratio (PSRR) :

60 dB

Min Supply Voltage :

2.5 V

Supplier Device Package :

TSOT-23-6

Slew Rate :

340 V/µs

Number of Terminals :

6

Pbfree Code :

No

Input Bias Current :

23 µA

Number of Channels :

1

Current - Input Bias :

23 µA

Max Operating Temperature :

70 °C

Supply Voltage Limit-Max :

6.3 V

Width :

1.625 mm

Operating Supply Current :

20 mA

JESD-609 Code :

e3

Number of Elements :

1

Terminal Form :

Gull wing

Operating Temperature :

0°C ~ 70°C

Temperature Grade :

COMMERCIAL

Input Offset Voltage (Vos) :

1 mV

Mounting Type :

Surface Mount

Min Dual Supply Voltage :

1.25 V

Mounting Style :

SMD/SMT

JESD-30 Code :

R-PDSO-G6

Number of Pins :

6

Terminal Pitch :

0.95 mm

Unity Gain BW-Nom :

1600000 kHz

Product Type :

Op Amps - High Speed Operational Amplifiers

Max Supply Voltage :

12.6 V

Length :

2.9 mm

Product Status :

Active

Seated Height-Max :

1 mm

Package Shape :

RECTANGULAR

Qualification Status :

Not Qualified

Pin Count :

6

Gain Bandwidth Product :

1.45 GHz

Lifecycle Status :

Production (Last Updated: 3 weeks ago)

Output Current per Channel :

90 mA

Series :

-
