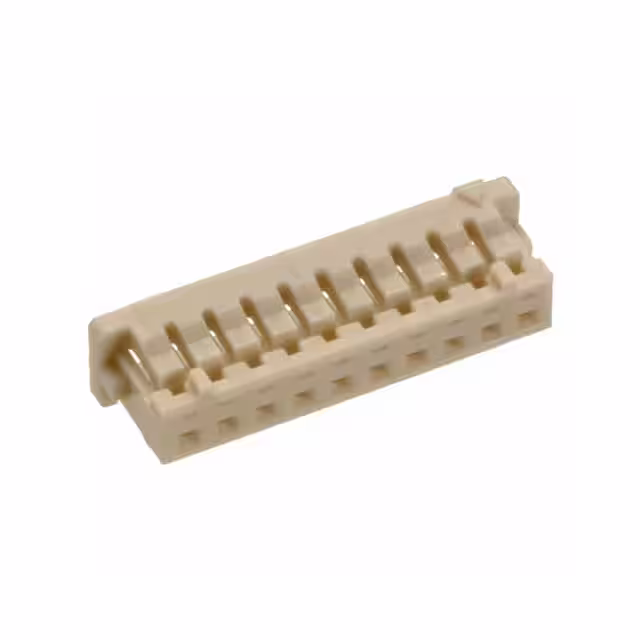

M30-1100700

Manufacturer :

Harwin

Product Category :

Rectangular Connector Housings

Factory Lead Time :

13 Weeks

Pitch :

0.049 1.25mm

Filter Feature :

No

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Contact Design :

PREASSEM CONN

Contact Resistance :

30mOhm

Number of Conductors :

ONE

Connector Type :

Receptacle

Packaging :

Bulk

Mount :

Free Hanging

Insertion Force-Max :

4.8928 N

Note :

Contacts Not Included

Insulation Material :

Nylon

Dielectric Withstanding Voltage :

500VAC V

RoHS Status :

ROHS3 Compliant

Body/Shell Style :

PLUG

Body Length or Diameter :

0.409 inch

Mixed Contacts :

No

HTS Code :

8536.69.40.40

UL Flammability Code :

94V-0

Number of Positions :

7

DIN Conformance :

No

Series :

M30

MIL Conformance :

No

Total Number of Contacts :

7

Contact Finish - Mating :

NOT SPECIFIED

Rated Current (Signal) :

1A

Published :

2013

Contact Termination :

Crimp

Reference Standard :

UL

Operating Temperature (Min) :

-25°C

ECCN Code :

EAR99

Contact Type :

Female Socket

Mounting Type :

Free Hanging (In-Line)

Operating Temperature (Max) :

85°C

Reliability :

COMMERCIAL

IEC Conformance :

No

Pbfree Code :

yes

Contact Material :

Phosphor Bronze

Number of Rows :

1

Package / Case :

SIL

Insulation Resistance :

500000000Ohm

Polarization Key :

POLARIZED HOUSING

Color :

Natural

Option :

WITH CABLE ASSEMBLY

Mating Information :

MULTIPLE MATING PARTS AVAILABLE
