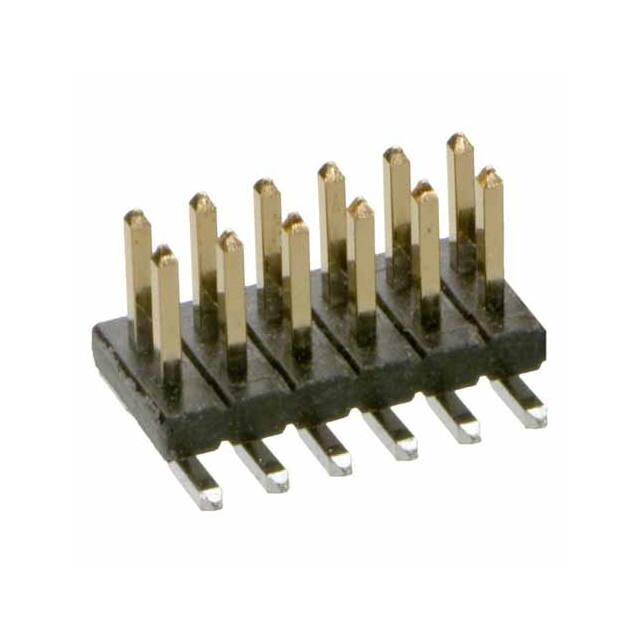

M50-3600642R

Manufacturer :

Harwin

Product Category :

Headers, Male Pins

Insulation Material :

Thermoplastic

Mounting Style :

Straight

Contact Finish Termination :

Tin (Sn) - with Nickel (Ni) barrier

DIN Conformance :

No

Reference Standard :

UL

Rated Current (Signal) :

1A

Body Length or Diameter :

0.3 inch

Contact Material :

NOT SPECIFIED

Body/Shell Style :

Socket

Insulation Resistance :

1000000000Ohm

Mating Contact Pitch :

0.05 inch

IEC Conformance :

No

Connector Type :

BOARD CONNECTOR

Option :

GENERAL PURPOSE

PCB Contact Row Spacing :

3.9116 mm

Total Number of Contacts :

12

Terminal Pitch :

1.27mm

Number Of PCB Rows :

2

Operating Temperature (Min) :

-40°C

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Mounting Type :

BOARD

Contact Pattern :

RECTANGULAR

Insulator Color :

Black

PCB Contact Pattern :

RECTANGULAR

Packaging :

Tape and Reel (TR)

RoHS Status :

ROHS3 Compliant

Number of Rows :

2

Additional Feature :

LOW PROFILE

Mixed Contacts :

No

Termination Type :

Surface Mount

Contact Gender :

FEMALE

Mating Contact Row Spacing :

0.05 inch

Contact Style :

SQ PIN-SKT

Operating Temperature (Max) :

105°C

UL Flammability Code :

94V-0

JESD-609 Code :

e3

Pbfree Code :

yes

Reliability :

COMMERCIAL

Filter Feature :

No

MIL Conformance :

No

ECCN Code :

EAR99

Number of Conductors :

ONE

Body Breadth :

0.134 inch

Mounting Option 1 :

LOCKING

Body Depth :

0.066 inch

Contact Finish - Mating :

NOT SPECIFIED

Contact Resistance :

20mOhm

HTS Code :

8536.69.40.40

Durability :

300 Cycles
