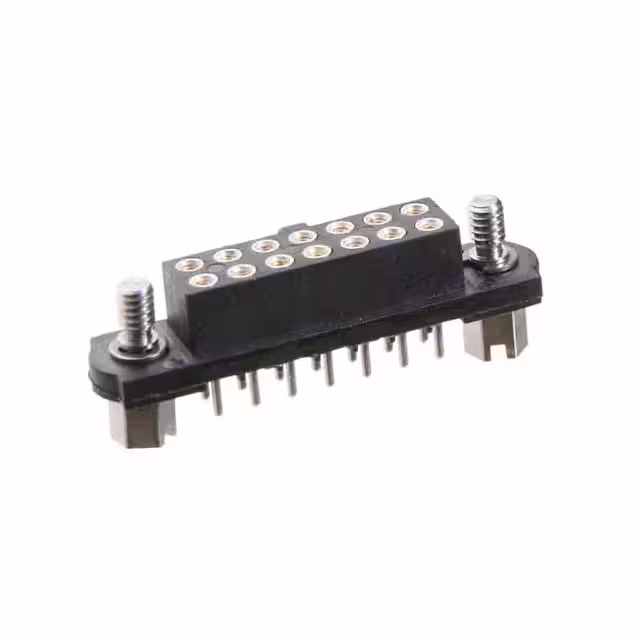

M80-4003205

Manufacturer :

Harwin

Product Category :

Headers, Receptacles, Female Sockets

Reliability :

COMMERCIAL

Contact Type :

Female Socket

Insulation Height :

0.205 5.20mm

Feature :

Jackscrews, Mating Flange, Mounting Flange, Polarizing Key

Number Of PCB Rows :

2

HTS Code :

8536.69.40.40

Packaging :

Tube

Mating Contact Pitch :

0.079 inch

IEC Conformance :

No

Contact Finish Thickness - Mating :

12.0μin 0.30μm

MIL Conformance :

No

Body Length or Diameter :

1.654 inch

Reference Standard :

UL

Row Spacing - Mating :

0.079 (2.00mm)

Material Flammability Rating :

UL94 V-0

Connector Type :

Receptacle

Contact Length - Post :

0.118 3.00mm

Mixed Contacts :

No

Number of Conductors :

ONE

Fastening Type :

Screw Lock

Plating Thickness :

11μin

Reach Compliance Code :

not_compliant

Series :

Datamate J-Tek

Mounting Type :

Through Hole

DIN Conformance :

No

Filter Feature :

No

Number of Positions :

32

Voltage - Rated :

120V

Length - Termination :

0.118 inch

Applications :

Automotive, General Purpose, Military

Published :

2010

JESD-609 Code :

e4

Operating Temperature :

-55°C~125°C

Durability :

500 Cycles

Contact Finish - Mating :

Gold

RoHS Status :

ROHS3 Compliant

Contact Finish Thickness - Post :

10.0μin 0.25μm

Stack Height (Mating) :

7.3mm 7.55mm

UL Flammability Code :

94V-0

PCB Contact Pattern :

RECTANGULAR

Style :

Board to Board or Cable

ECCN Code :

EAR99

Termination :

Solder

Insulation Color :

Black

Pitch - Mating :

0.079 2.00mm

Pbfree Code :

yes

Contact Material :

BERYLLIUM COPPER

Number of Positions Loaded :

All

Additional Feature :

PANEL MOUNTABLE

Contact Shape :

Circular

Number of Rows :

2

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Insulation Resistance :

100000000Ohm

Insulation Material :

Polyphenylene Sulfide (PPS), Glass Filled
