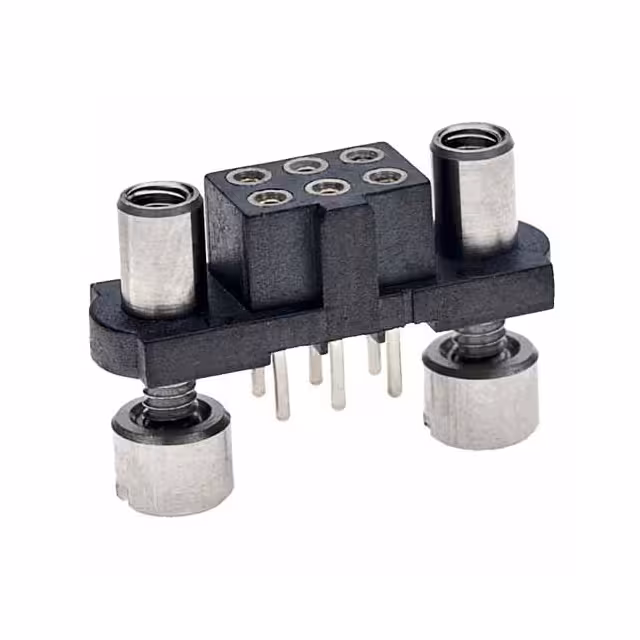

M80-4052005

Manufacturer :

Harwin

Product Category :

Headers, Receptacles, Female Sockets

Reliability :

COMMERCIAL

Style :

Board to Board or Cable

Number of Positions Loaded :

All

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Pbfree Code :

yes

Mounting Type :

Through Hole

Insulation Material :

Polyphenylene Sulfide (PPS), Glass Filled

UL Flammability Code :

94V-0

Row Spacing - Mating :

0.079 (2.00mm)

ECCN Code :

EAR99

Contact Finish - Mating :

Gold

Insulation Resistance :

100000000Ohm

PCB Contact Pattern :

RECTANGULAR

Number Of PCB Rows :

2

Length - Termination :

0.118 inch

Packaging :

Tube

IEC Conformance :

No

DIN Conformance :

No

Plating Thickness :

11μin

Durability :

500 Cycles

Contact Finish Thickness - Mating :

12.0μin 0.30μm

JESD-609 Code :

e4

Filter Feature :

No

Voltage - Rated :

800V

Insulation Color :

Black

MIL Conformance :

No

Contact Material :

BERYLLIUM COPPER

Fastening Type :

Screw Lock

Insulation Height :

0.204 5.17mm

Number of Conductors :

ONE

Operating Temperature :

-55°C~125°C

Mixed Contacts :

No

Stack Height (Mating) :

7.3mm 7.55mm

Material Flammability Rating :

UL94 V-0

Factory Lead Time :

13 Weeks

HTS Code :

8536.69.40.40

Reach Compliance Code :

not_compliant

Additional Feature :

RoHS Compliant

Contact Length - Post :

0.118 3.00mm

Series :

Datamate J-Tek

Termination :

Solder

Number of Rows :

2

RoHS Status :

ROHS3 Compliant

Applications :

Automotive, General Purpose, Military

Pitch - Mating :

0.079 2.00mm

Contact Shape :

Circular

Connector Type :

Receptacle

Body Length or Diameter :

1.181 inch

Feature :

Jackscrews, Mating Flange, Mounting Flange, Polarizing Key

Mating Contact Pitch :

0.079 inch

Published :

2013

Reference Standard :

UL

Number of Positions :

20

Contact Type :

Female Socket
