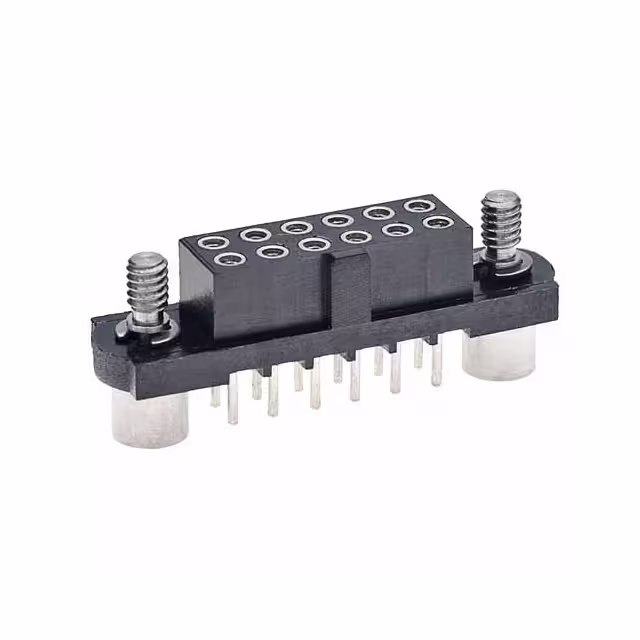

M80-4201642

Manufacturer :

Harwin

Product Category :

Headers, Receptacles, Female Sockets

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Number of Positions :

16

Packaging :

Tube

Voltage - Rated :

120V

HTS Code :

8536.69.40.40

Factory Lead Time :

12 Weeks

Contact Shape :

Circular

JESD-609 Code :

e3

Insulation Height :

0.205 5.20mm

Number of Rows :

2

Pbfree Code :

yes

UL Flammability Code :

94V-0

Contact Material :

BERYLLIUM COPPER

Row Spacing - Mating :

0.079 (2.00mm)

Connector Type :

Receptacle

Mounting Type :

Through Hole

Stack Height (Mating) :

7.3mm 7.55mm

ECCN Code :

EAR99

Series :

Datamate J-Tek

Material Flammability Rating :

UL94 V-0

Mating Contact Pitch :

0.079 inch

Reliability :

COMMERCIAL

Operating Temperature :

-55°C~125°C

Insulation Material :

Polyphenylene Sulfide (PPS), Glass Filled

Length - Termination :

0.118 inch

Filter Feature :

No

Contact Finish - Mating :

Gold

Insulation Resistance :

100000000Ohm

Mixed Contacts :

No

Feature :

Jackscrews, Mating Flange, Mounting Flange, Polarizing Key

Contact Finish - Post :

Tin

Plating Thickness :

11μin

Contact Finish Thickness - Post :

137.8μin 3.50μm

MIL Conformance :

No

Durability :

500 Cycles

RoHS Status :

ROHS3 Compliant

Number of Positions Loaded :

All

Applications :

Automotive, General Purpose, Military

Additional Feature :

PANEL MOUNTABLE

Contact Type :

Female Socket

Published :

2010

Fastening Type :

Screw Lock

PCB Contact Pattern :

RECTANGULAR

Reference Standard :

UL

Style :

Board to Board or Cable

IEC Conformance :

No

Pitch - Mating :

0.079 2.00mm

DIN Conformance :

No

Number Of PCB Rows :

2

Number of Conductors :

ONE

Contact Length - Post :

0.118 3.00mm

Contact Finish Thickness - Mating :

12.0μin 0.30μm

Termination :

Solder

Insulation Color :

Black

Reach Compliance Code :

not_compliant
