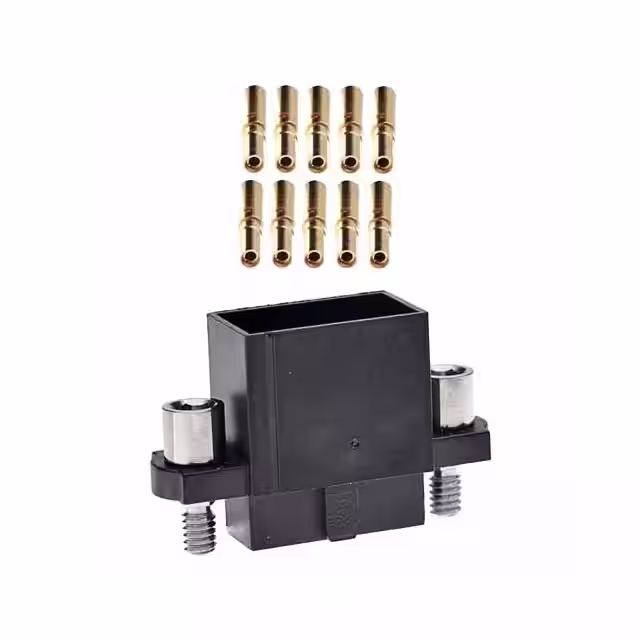

M80-4855005

Manufacturer :

Harwin

Product Category :

Free Hanging, Panel Mount

Contact Material :

BERYLLIUM COPPER

UL Flammability Code :

94V-0

Polarization Key :

POLARIZED HOUSING

Wire Type :

Discrete

JESD-609 Code :

e4

Reliability :

COMMERCIAL

Total Number of Contacts :

50

Mixed Contacts :

No

Wire Gauge :

22 AWG

Fastening Type :

Screw Lock

Feature :

Jackscrews, Polarizing Key, Potting Wall

Option :

GENERAL PURPOSE

Number of Positions :

50

MIL Conformance :

No

Contact Finish Thickness :

11.8μin 0.30μm

Filter Feature :

No

Cable Termination :

Crimp

ECCN Code :

EAR99

Insulation Material :

GLASS FILLED POLYPHENYLENE SULPHIDE

Factory Lead Time :

13 Weeks

Additional Feature :

COMPATIBLE CONTACT: M80-0110005

RoHS Status :

ROHS3 Compliant

Insulation Resistance :

100000000Ohm

Pitch :

0.079 2.00mm

Number of Rows :

2

Body/Shell Style :

PLUG

Mounting Type :

Free Hanging (In-Line)

Contact Type :

Female Socket

Packaging :

Bulk

Connector Type :

Receptacle

Rated Current (Signal) :

3A

Pbfree Code :

yes

Reference Standard :

UL

Color :

Black

Contact Finish :

Galvanized

Operating Temperature (Min) :

-55°C

Row Spacing :

0.079 (2.00mm)

Contact Design :

LOOSE

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

IEC Conformance :

No

HTS Code :

8536.69.40.40

DIN Conformance :

No

Series :

Datamate J-Tek
