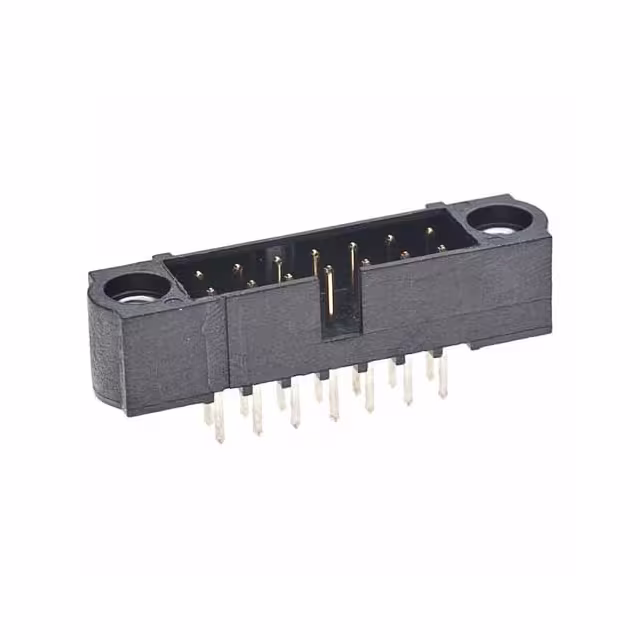

M80-5004405

Manufacturer :

Harwin

Product Category :

Headers, Male Pins

Contact Gender :

Male

JESD-609 Code :

e4

Reliability :

COMMERCIAL

Contact Pattern :

RECTANGULAR

Insulation Resistance :

100000000Ohm

Polarization Key :

POLARIZED HOUSING

Mounting Option 2 :

JACKSCREW

Number Of PCB Rows :

2

Operating Temperature (Min) :

-55°C

Contact Resistance :

25mOhm

Contact Style :

RND PIN-SKT

Connector Type :

BOARD CONNECTOR

Mounting Style :

Straight

ECCN Code :

EAR99

Durability :

500 Cycles

Body Length or Diameter :

2.126 inch

HTS Code :

8536.69.40.40

Mixed Contacts :

No

Body Breadth :

0.238 inch

Mounting Option 1 :

M2x0.4

UL Flammability Code :

94V-0

MIL Conformance :

No

Number of Conductors :

ONE

PCB Contact Row Spacing :

2.0066 mm

Insulator Color :

Black

Number of Rows :

2

Body/Shell Style :

Receptacle

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Option :

GENERAL PURPOSE

DIN Conformance :

No

Additional Feature :

PANEL MOUNTABLE, POLARIZED, SHROUDED

Terminal Pitch :

2mm

Insertion Force-Max :

2.78 N

Reference Standard :

UL

Pbfree Code :

yes

Factory Lead Time :

9 Weeks

Termination Type :

Solder

Contact Finish - Mating :

NOT SPECIFIED

Body Depth :

0.22 inch

Mounting Type :

BOARD

Operating Temperature (Max) :

125°C

PCB Contact Pattern :

RECTANGULAR

IEC Conformance :

No

Filter Feature :

No

RoHS Status :

ROHS3 Compliant

Total Number of Contacts :

44

Contact Finish Termination :

Gold (Au)

Plating Thickness :

12μin

Mating Contact Row Spacing :

0.079 inch

Rated Current (Signal) :

3A

Insulation Material :

GLASS FILLED POLYPHENYLENE SULPHIDE

Length - Termination :

0.128 inch

Contact Material :

NOT SPECIFIED

Mating Contact Pitch :

0.079 inch
