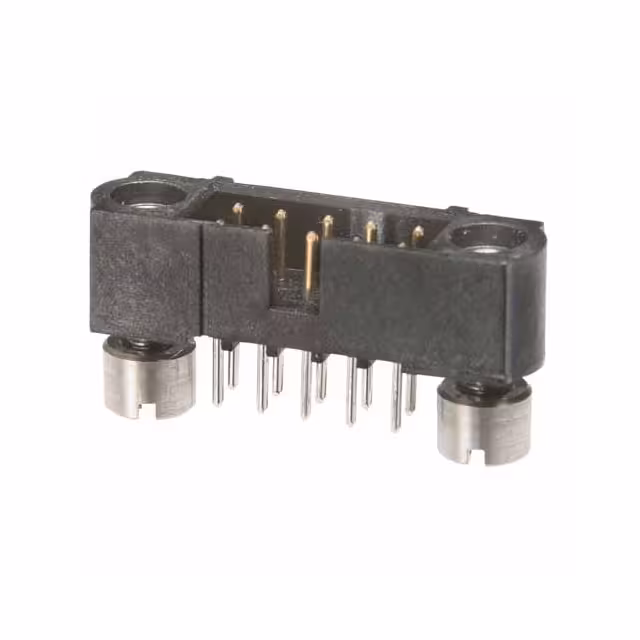

M80-5101205

Manufacturer :

Harwin

Product Category :

Headers, Male Pins

Polarization Key :

POLARIZED HOUSING

Body Breadth :

0.238 inch

Number Of PCB Rows :

2

Reliability :

COMMERCIAL

Filter Feature :

No

Insulation Material :

GLASS FILLED POLYPHENYLENE SULPHIDE

RoHS Status :

ROHS3 Compliant

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Option :

GENERAL PURPOSE

Operating Temperature (Min) :

-55°C

Mixed Contacts :

No

Termination Type :

Solder

Mating Contact Row Spacing :

0.079 inch

Pbfree Code :

yes

PCB Contact Row Spacing :

2.0066 mm

Mating Information :

MULTIPLE MATING PARTS AVAILABLE

Factory Lead Time :

11 Weeks

Number of Conductors :

ONE

Durability :

500 Cycles

Total Number of Contacts :

12

Additional Feature :

RoHS Compliant

Plating Thickness :

30μin

DIN Conformance :

No

Length - Termination :

0.13 inch

JESD-609 Code :

e4

Body Depth :

0.22 inch

Reference Standard :

UL

Number of Pins :

12

IEC Conformance :

No

UL Flammability Code :

94V-0

Mating Contact Pitch :

0.079 inch

Contact Pattern :

RECTANGULAR

Body/Shell Style :

Receptacle

Contact Material :

Phosphor Bronze

Rated Current (Signal) :

3A

Mount :

Through Hole

Connector Type :

BOARD CONNECTOR

Insulation Resistance :

100000000Ohm

Body Length or Diameter :

0.866 inch

ECCN Code :

EAR99

Number of Rows :

2

Contact Resistance :

25mOhm

Contact Gender :

Male

Contact Finish - Mating :

GOLD (30)

Contact Finish Termination :

Gold (Au)

Contact Style :

RND PIN-SKT

HTS Code :

8536.69.40.40

PCB Contact Pattern :

RECTANGULAR

Insulator Color :

Black

Insertion Force-Max :

2.78 N

MIL Conformance :

No

Terminal Pitch :

2mm
