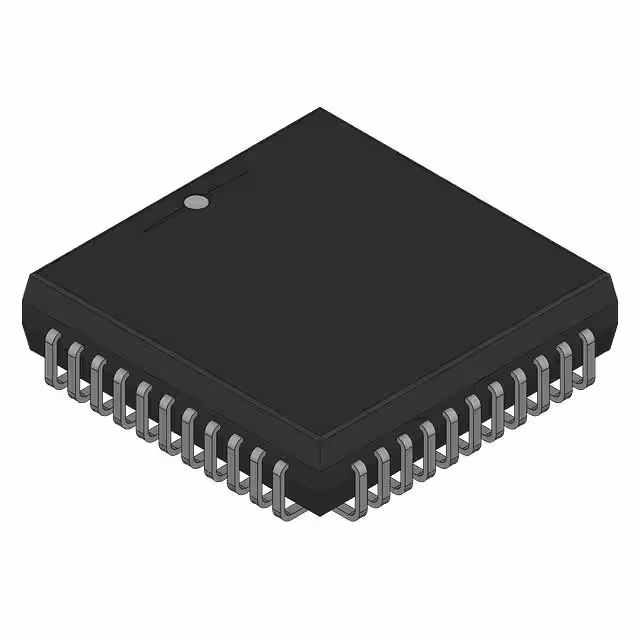

MACH111-7JC

Manufacturer :

Lattice Semiconductor

Product Category :

CPLDs (Complex Programmable Logic Devices)

Package Shape :

Square

Qualification Status :

COMMERCIAL

Programmable Logic Type :

EE PLD

Propagation Delay :

7.5 ns

Mounting Type :

Surface Mount

Package / Case :

44-LCC (J-Lead)

Terminal Pitch :

1.27 mm

Number of I/O Lines :

64

Operating Temperature :

0°C ~ 70°C (TA)

Voltage Supply - Internal :

4.75V ~ 5.25V

Number of Logic Elements/Blocks :

2

Pin Count :

44

Organization :

2 DEDICATED INPUTS, 64 I/O

Product Status :

Active

Technology :

CMOS

Number of Terminals :

44

Terminal Form :

J BEND

Width :

16.5862 mm

Number of I/O :

32

Number of Dedicated Inputs :

2

Programmable Type :

EE PLD

Length :

16.5862 mm

Delay Time tpd(1) Max :

7.5 ns

Reach Compliance Code :

Unknown

Supplier Device Package :

44-PLCC (16.58x16.58)

Temperature Grade :

COMMERCIAL

Series :

MACH 1

JESD-30 Code :

S-PQCC-J44

Terminal Position :

QUAD

Package :

Bulk

Surface Mount :

yes

Seated Height-Max :

4.57 mm

Output Function :

MACROCELL

Manufacturer :

Rochester Electronics LLC
