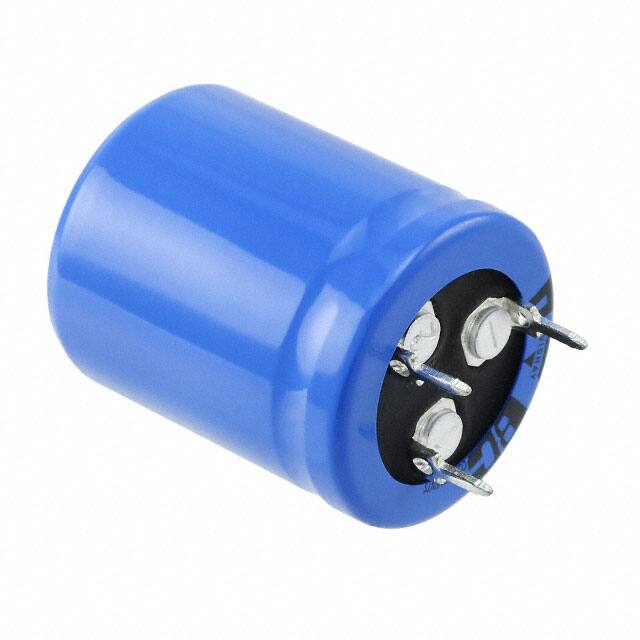

MAL205358689E3

Manufacturer :

Vishay

Product Category :

Aluminum Electrolytic Capacitors

Packing Method :

Bulk

Capacitance :

68µF

Rated (DC) Voltage (URdc) :

385V

Pbfree Code :

yes

Size / Dimension :

0.984Dia 25.00mm

Package / Case :

Radial, Can - 3 Lead

Applications :

GENERAL PURPOSE

Diameter :

25mm

ESR (Equivalent Series Resistance) :

2.2Ohm @ 100Hz

Leakage Current :

0.16mA

Voltage - Rated :

385V

Ripple Current @ Low Frequency :

470mA @ 100Hz

Lifetime @ Temp :

12000 Hrs @ 85°C

Mounting Type :

Through Hole

Capacitor Type :

ALUMINUM ELECTROLYTIC CAPACITOR

Terminal Shape :

Flat

Polarization :

Polar

Packaging :

Tape and Box (TB)

Factory Lead Time :

11 Weeks

Height :

30mm

Reference Standard :

IEC60384-4

Radiation Hardening :

No

Series :

053 PEC-PW

Mount :

Through Hole

Moisture Sensitivity Level (MSL) :

Not Applicable

Height Seated (Max) :

1.378 35.00mm

Impedance :

1.48Ohm

Lead Spacing :

0.492 12.50mm

Dielectric Material :

ALUMINUM (WET)

Life (Hours) :

12000 hours

Tolerance :

±20%

ECCN Code :

EAR99

Terminal Finish :

Matte Tin (Sn)

RoHS Status :

ROHS3 Compliant

Number of Terminations :

2

Operating Temperature :

-40°C~85°C

Lead Pitch :

12.4968mm

Ripple Current :

470mA

Termination :

Solder

JESD-609 Code :

e3
