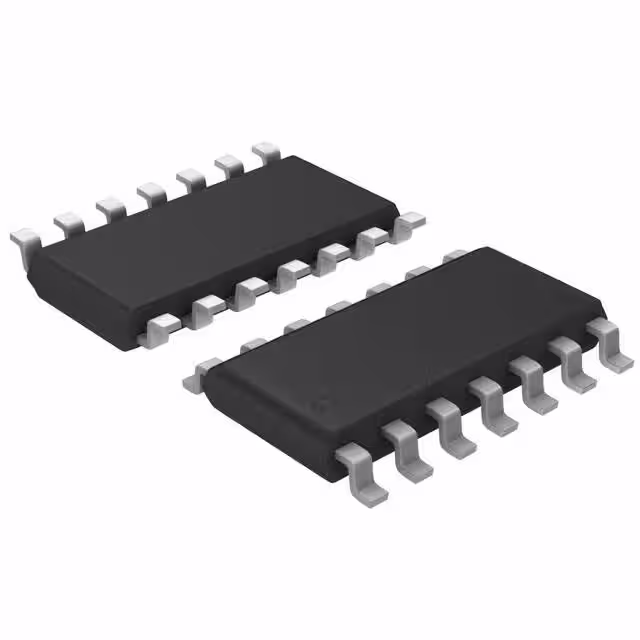

MAX4219ESD

Manufacturer :

Analog Devices, Inc.

Product Category :

Instrumentation, OP Amps, Buffer Amps

Mount :

Surface Mount

Slew Rate :

600 V/µs

Voltage Gain :

6.02 dB

Number of Pins :

14

Current - Output / Channel :

120 mA

REACH SVHC :

Unknown

Min Dual Supply Voltage :

1.575 V

Min Supply Voltage :

3.15 V

Base Product Number :

MAX4219

Max Supply Voltage :

11 V

Topology :

Voltage Feedback

Operating Temperature :

-40°C ~ 85°C

Mounting Style :

SMD/SMT

Output Type :

Rail-to-Rail

MSL :

MSL 1 - Unlimited

Max Power Dissipation :

667 mW

Number of Channels :

3

Manufacturer Lifecycle Status :

Production (Last Updated: 1 month ago)

-3db Bandwidth :

200 MHz

Output Current :

120 mA

Operating Supply Voltage :

9 V

Mounting Type :

Surface Mount

Package :

Tube

Product Type :

Op Amps - High Speed Operational Amplifiers

Package / Case :

14-SOIC (0.154, 3.90mm Width)

Radiation Hardening :

No

Series :

-

Current - Input Bias :

5.4 µA

Minimum Operating Temperature :

- 40 C

Input Offset Voltage (Vos) :

4 mV

Voltage - Input Offset :

4 mV

RoHS :

Compliant

Max Dual Supply Voltage :

5.5 V

Min Operating Temperature :

-40 °C

Lifecycle Status :

Production (Last Updated: 1 month ago)

Input Bias Current :

5.4 µA

Number of Circuits :

3

Maximum Operating Temperature :

+ 85 C

Current - Supply :

5.5mA (x3 Channels)

Operating Supply Current :

5.5 mA

Number of Amplifiers :

3

Product :

Operational Amplifiers

Supplier Device Package :

14-SOIC

Subcategory :

Amplifier ICs

Max Operating Temperature :

85 °C

Voltage Gain dB :

-

Power Supply Rejection Ratio (PSRR) :

55 dB

Product Status :

Obsolete

Output Current per Channel :

120 mA

Amplifier Type :

Buffer, Voltage Feedback
