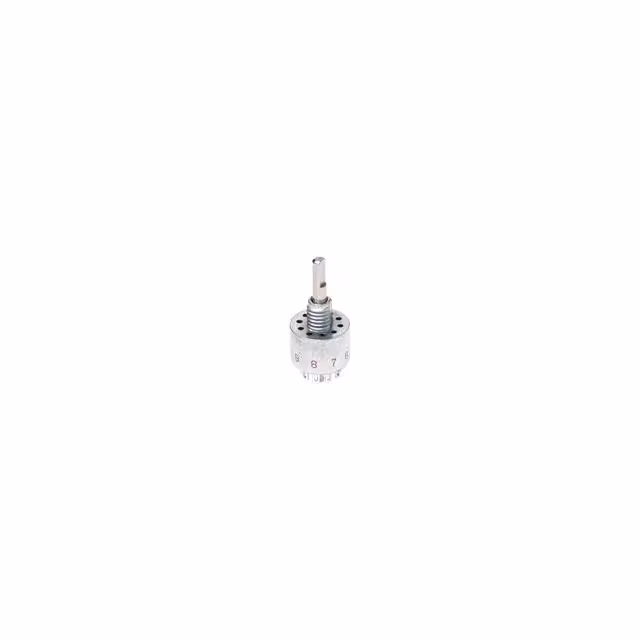

MB05L3NCQD

Manufacturer :

C&K

Product Category :

Depth :

13.34mm

RoHS Status :

ROHS3 Compliant

Contact Material :

COPPER ALLOY

Voltage - Rated DC :

28V

Termination :

PC Pins

Index Angle :

36 °

Number of Positions :

5

Housing Material :

Zinc

Voltage - Rated AC :

125V

Max Voltage Rating (AC) :

125V

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Series :

M

Panel Cutout Dimensions :

Circular - 6.60mm Dia

Electrical Life :

10000 Cycles

Number of Decks :

1

Current Rating :

250mA

Max Operating Temperature :

85°C

Operating Force :

2.880 ~ 5.041gfm

Length :

13.34mm

Orientation :

Straight

Contact Timing :

Non-Shorting (BBM)

Contact Finish :

Silver

Termination Style :

PC Pin

Contact Style :

Non-Shorting

Depth Behind Panel :

10.42mm

Current Rating (Amps) :

250mA AC/DC

Actuator Material :

Stainless Steel

Factory Lead Time :

20 Weeks

Max Voltage Rating (DC) :

28V

Actuator Type :

Round (3.17mm Dia)

Index Stops :

FIXED

Max Current Rating :

250mA

Mounting Type :

Panel Mount, Through Hole

Circuit per Deck :

DP5T

Contact Plating :

Silver

Throw Configuration :

DP5T

Radiation Hardening :

No

Mount :

Panel, Through Hole

Actuator Length :

10.16mm

Min Operating Temperature :

-30°C

Number of Poles per Deck :

2

Angle of Throw :

36°
