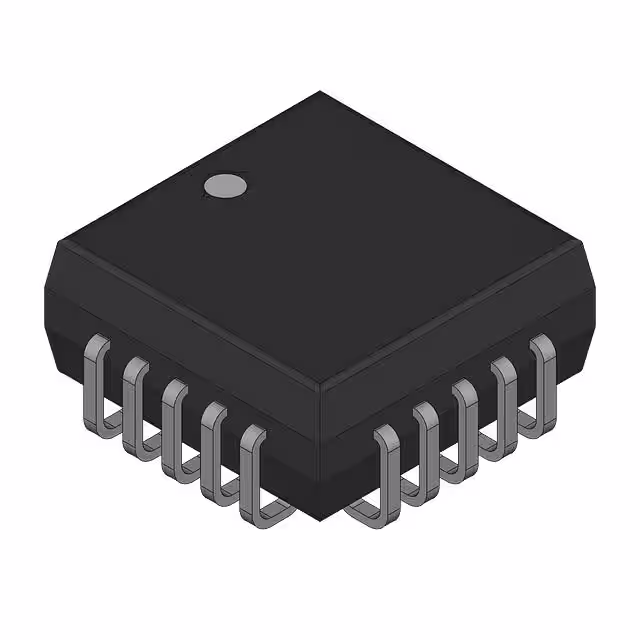

MC10186FN

Manufacturer :

onsemi

Product Category :

Flip Flops

Lifecycle Status :

Obsolete (Last Updated: 2 years ago)

Product Status :

Active

Terminal Finish :

TIN LEAD

fmax-Min :

125 MHz

Qualification Status :

Not Qualified

Pbfree Code :

No

Width :

8.965 mm

Number of Terminals :

20

Manufacturer Lifecycle Status :

Obsolete (Last Updated: 2 years ago)

Terminal Form :

J BEND

Trigger Type :

POSITIVE EDGE

RoHS :

Compliant

Reach Compliance Code :

Unknown

Number of Pins :

20

Output Polarity :

TRUE

Additional Feature :

COMMON RESET, RESET ACTIVE ONLY WHEN CLOCK IS LOW

Pin Count :

20

Logic IC Type :

D FLIP-FLOP

JESD-609 Code :

e0

Terminal Position :

QUAD

Peak Reflow Temperature (Cel) :

NOT SPECIFIED

Surface Mount :

yes

Length :

8.965 mm

Terminal Pitch :

1.27 mm

Lead Free :

Contains Lead

Manufacturer :

Rochester Electronics LLC

Package Shape :

Square

Number of Bits :

1

HTS Code :

8542.39.00.01

Technology :

ECL

Number of Functions :

6

Family :

10k

Propagation Delay (tpd) :

4.5 ns

Series :

*

Seated Height-Max :

4.57 mm

Temperature Grade :

Other

JESD-30 Code :

S-PQCC-J20

Output Characteristics :

OPEN-EMITTER

Package :

Bulk
