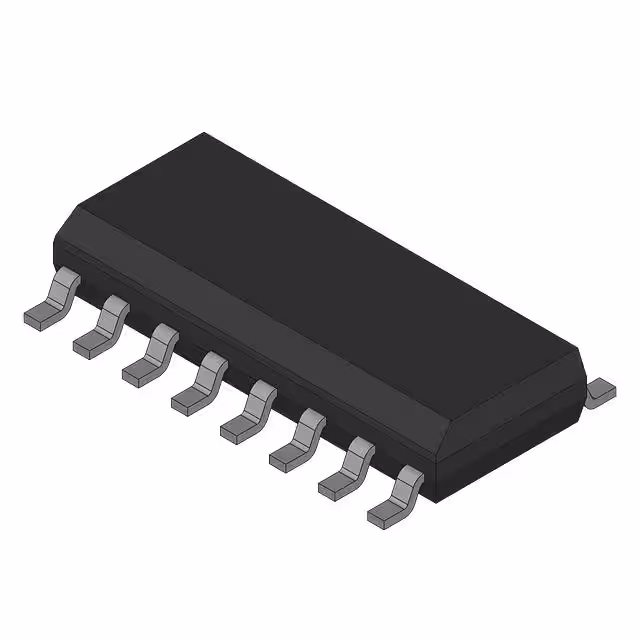

MC14018BF

Manufacturer :

onsemi

Product Category :

Counters, Dividers

Terminal Pitch :

1.27 mm

Width :

5.275 mm

Number of Bits :

5

Qualification Status :

COMMERCIAL

Family :

4000/14000/40000

Logic IC Type :

RING COUNTER

Technology :

CMOS

Package :

Bulk

Reach Compliance Code :

Unknown

Mode of Operation :

SYNCHRONOUS

Terminal Finish :

TIN LEAD

Peak Reflow Temperature (Cel) :

NOT SPECIFIED

fmax-Min :

4 MHz

JESD-30 Code :

R-PDSO-G16

Load/Preset Input :

yes

Terminal Position :

Dual

Number of Terminals :

16

JESD-609 Code :

e0

Number of Functions :

1

Supply Voltage-Max (Vsup) :

18 V

Base Product Number :

MC14018

Temperature Grade :

Military

Package Shape :

RECTANGULAR

Trigger Type :

POSITIVE EDGE

Count Direction :

UP

Surface Mount :

yes

Seated Height-Max :

2.05 mm

Pin Count :

16

Propagation Delay (tpd) :

620 ns

Supply Voltage-Min (Vsup) :

3 V

Series :

*

Terminal Form :

Gull wing

Pbfree Code :

No

Manufacturer :

Rochester Electronics LLC

Length :

10.2 mm

Product Status :

Active
