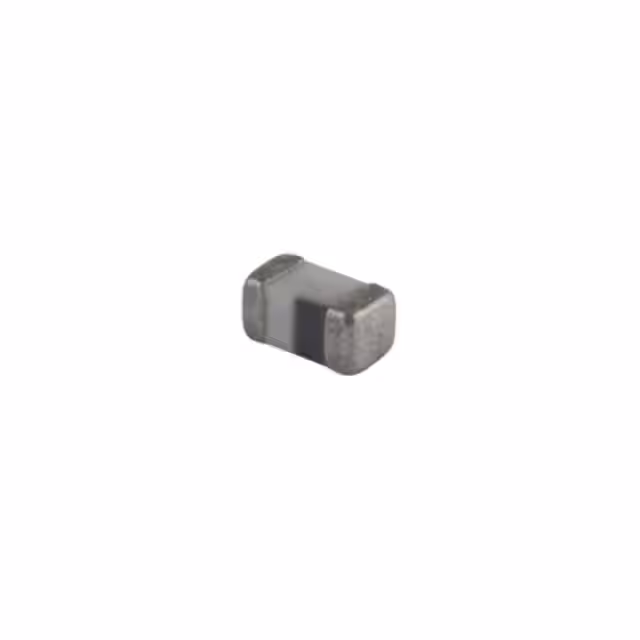

MCLA1005V2-121-R

Manufacturer :

Eaton-Electronics Division

Product Category :

Fixed Inductors

Ratings :

AEC-Q200

Subcategory :

Inductors, Chokes and Coils

Product Status :

Active

Current - Saturation (Isat) :

-

Product Type :

RF Inductors - Leaded

Type :

Multilayer

Termination :

Standard

DC Resistance (DCR) :

2.8Ohm Max

Size / Dimension :

0.039" L x 0.020" W (1.00mm x 0.50mm)

Minimum Operating Temperature :

- 40 C

Mounting Style :

PCB Mount

Operating Temperature :

-40°C ~ 125°C

Width :

0.5 mm

Current Rating (Amps) :

150 mA

Mounting Type :

Surface Mount

Inductance Frequency - Test :

100 MHz

Tolerance :

±5%

Saturation Current :

-

Package / Case :

0402 (1005 Metric)

Material - Core :

-

Supplier Device Package :

0402

Shielding :

Unshielded

Package :

Tape and Reel (TR)

Product :

RF Inductors

Maximum Operating Temperature :

+ 125 C

Series :

MCLA1005V2

Height - Seated (Max) :

0.026" (0.65mm)

Termination Style :

SMD/SMT

Length :

1 mm

Frequency - Self Resonant :

600MHz

Height :

0.5 mm

Inductance :

120 nH

Features :

-

Q @ Freq :

8 @ 100MHz

Diameter :

-
