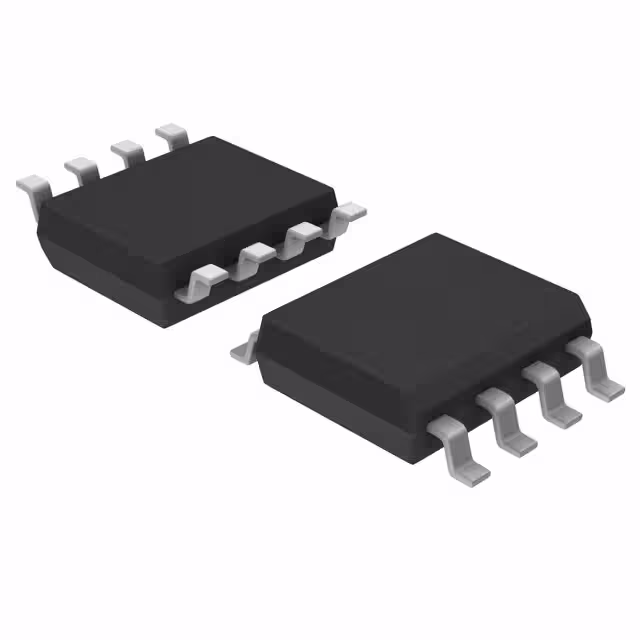

MCQ4407A-TP
Or copy the link below:
- Mfr.Part #
- MCQ4407A-TP
- Manufacturer
- Micro Commercial Components (MCC)
- Package / Case
- 8-SOIC (0.154, 3.90mm Width)
- Datasheet
- Download
- Description
- MOSFET P-CH
- Stock
- 2,240
- In Stock ：
- 2,240
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Micro Commercial Components (MCC)
- Product Category :
- Transistors - FETs, MOSFETs - Single
- Current - Continuous Drain (Id) @ 25°C :
- 12A
- Supplier Device Package :
- 8-SOP
- Input Capacitance (Ciss) (Max) @ Vds :
- 1750 pF @ 15 V
- Operating Temperature :
- -55°C ~ 150°C (TJ)
- Drain to Source Voltage (Vdss) :
- 30 V
- Package :
- Tape and Reel (TR)
- Drive Voltage (Max Rds On, Min Rds On) :
- 4.5V, 10V
- Series :
- -
- Technology :
- MOSFET (Metal Oxide)
- Gate Charge (Qg) (Max) @ Vgs :
- 24 nC @ 10 V
- Mounting Type :
- Surface Mount
- Rds On (Max) @ Id, Vgs :
- 15mOhm @ 10A, 10V
- Product Status :
- Obsolete
- Power Dissipation (Max) :
- 3W
- FET Feature :
- -
- Vgs(th) (Max) @ Id :
- 3V @ 250µA
- Package / Case :
- 8-SOIC (0.154, 3.90mm Width)
- FET Type :
- P-Channel
- Vgs (Max) :
- ±20V
- Base Product Number :
- MCQ4407
- Datasheets
- MCQ4407A-TP
MOSFET (Metal Oxide) P-Channel 15mOhm @ 10A, 10V ±20V 1750 pF @ 15 V 24 nC @ 10 V 30 V 8-SOIC (0.154, 3.90mm Width)
MCQ4407A-TP Overview
The input capacitance parameter, CI, is defined as the capacitance between the input terminals of an op amp with either input grounded, and this device's maximal input capacitance is 1750 pF @ 15 V.Operating this transistor requires a 30 V drain to source voltage (Vdss).
MCQ4407A-TP Features
a 30 V drain to source voltage (Vdss)
MCQ4407A-TP Applications
There are a lot of Micro Commercial Components
MCQ4407A-TP applications of single MOSFETs transistors.
- LCD/LED TV
- Consumer Appliances
- Lighting
- Uninterruptible Power Supply
- AC-DC Power Supply
- Synchronous Rectification for ATX 1 Server I Telecom PSU
- Motor drives and Uninterruptible Power Supplies
- Micro Solar Inverter
- DC/DC converters
- Power Tools
