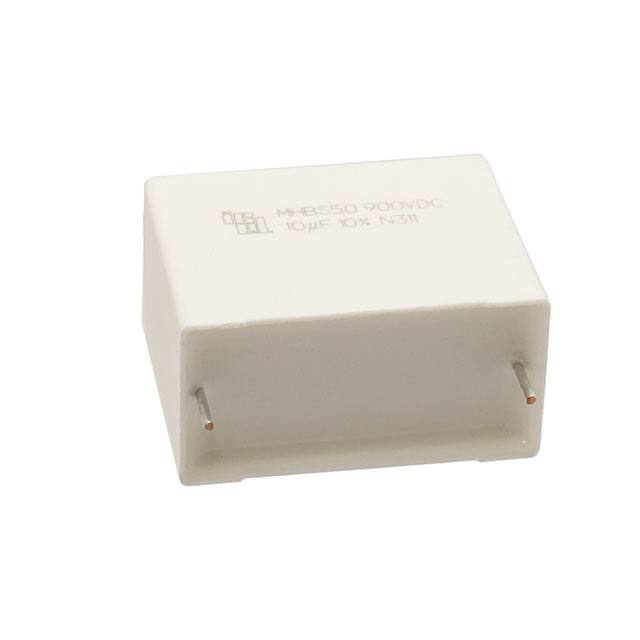

MHBS505100KJS

Manufacturer :

Nichicon

Product Category :

Film Capacitors

Size / Dimension :

1.673" L x 0.866" W (42.50mm x 22.00mm)

Dielectric :

Polypropylene (PP)

Height :

33.5 mm

Minimum Operating Temperature :

- 40 C

Product Category :

Film Capacitors

Manufacturer :

Nichicon

Product Status :

Active

Features :

-

Operating Temperature :

-40°C ~ 85°C

Height - Seated (Max) :

1.319" (33.50mm)

Termination Style :

Radial

Number of Pins :

4 Pin

Dielectric Material :

Polypropylene (PP), Metallized

Subcategory :

Capacitors

Width :

22 mm

Packaging :

Bulk

Package :

Bulk

Maximum Operating Temperature :

+ 85 C

RoHS :

Details

Tolerance :

±10%

ESR :

6.8 MOhms

Lead Diameter :

1.2 mm

ESR (Equivalent Series Resistance) :

6.8 MOhms

Voltage Rating - DC :

900V

Voltage Rating - AC :

-

Ratings :

-

Lead Spacing :

1.476" (37.50mm)

Capacitance :

10 µF

Brand :

Nichicon

Applications :

DC Link, DC Filtering; High Frequency, Switching

Product Type :

Film Capacitors

Product :

DC Link Film Capacitors

Series :

MHBS

Termination :

PC Pins

Length :

42.5 mm
