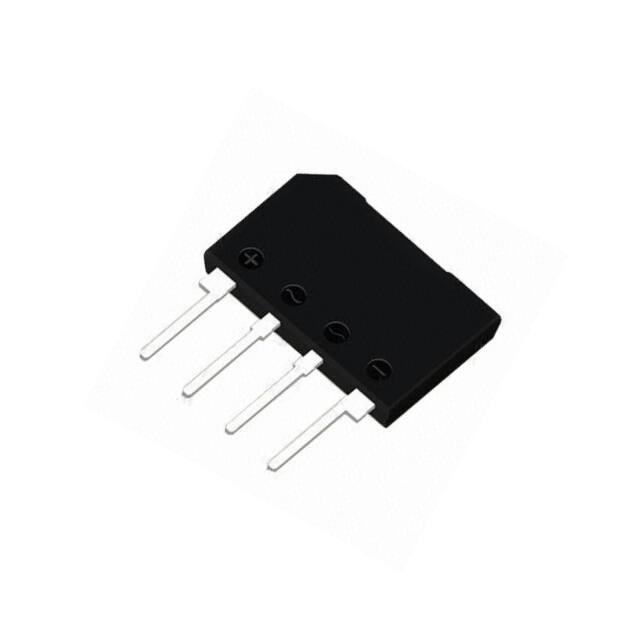

MP1510W

Manufacturer :

Rectron USA

Product Category :

Diodes - Bridge Rectifiers

Diode Element Material :

SILICON

Current - Average Rectified (Io) :

15 A

Length :

29 mm

Product Category :

Bridge Rectifiers

Brand :

Rectron

Series :

MP15

Mounting Style :

Through Hole

Manufacturer :

Rectron

Package / Case :

MP-15W

Voltage - Peak Reverse (Max) :

1 kV

Minimum Operating Temperature :

- 55 C

Rep Pk Reverse Voltage-Max :

1000 V

Max Surge Current :

300 A

Breakdown Voltage-Min :

1000 V

Maximum Operating Temperature :

+ 150 C

Number of Phases :

1

Package Shape :

Square

Terminal Form :

Wire

Operating Temperature :

-55°C ~ 150°C (TJ)

Max Reverse Leakage Current :

5 µA

Voltage - Forward (Vf) (Max) @ If :

1.05 V @ 7.5 A

Supplier Device Package :

MP-15

Terminal Position :

UPPER

JESD-30 Code :

S-PUFM-W4

Diode Type :

Single Phase

RoHS :

Non-Compliant

Output Current-Max :

15 A

Product Type :

Bridge Rectifiers

Vf - Forward Voltage :

1.1 V

Non-rep Pk Forward Current-Max :

300 A

Surface Mount :

No

Packaging :

Bulk

Mounting Type :

THROUGH-HOLE

Additional Feature :

UL APPROVED

Width :

29 mm

Package :

Tray

Reach Compliance Code :

Compliant

Termination Style :

Through Hole

Subcategory :

Diodes and Rectifiers

Type :

Single Phase Bridge

Product Status :

Active

Voltage :

Reverse Voltage Vr - 1000V

Technology :

Standard

Current - Reverse Leakage @ Vr :

500 nA @ 1000 V

Height :

7.9 mm

Peak Reflow Temperature (Cel) :

NOT SPECIFIED

Tolerance :

Recovery Time - < 60 Hz

Min Operating Temperature :

-55 °C

Max Operating Temperature :

150 °C

Number of Terminals :

4

Number of Elements :

4

Configuration :

BRIDGE, 4 ELEMENTS
