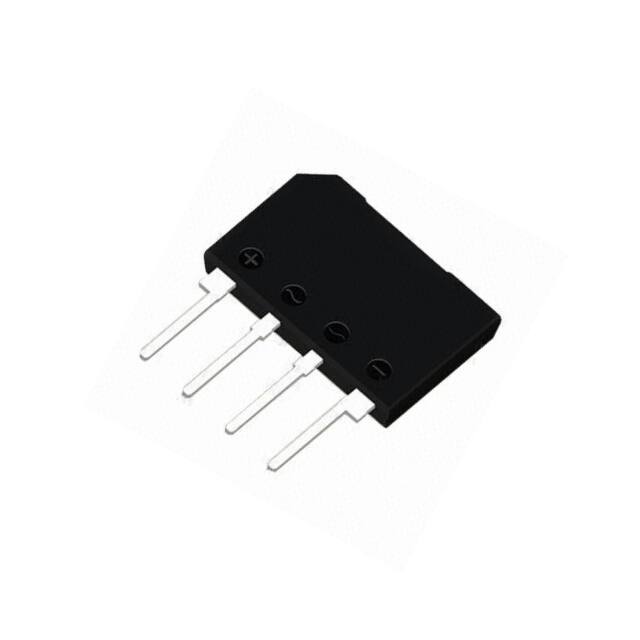

MP252

Manufacturer :

Rectron USA

Product Category :

Diodes - Bridge Rectifiers

Subcategory :

Diodes and Rectifiers

Reach Compliance Code :

not_compliant

Voltage - Peak Reverse (Max) :

200 V

Packaging :

Bulk

Minimum Operating Temperature :

- 55 C

Terminal Finish :

Nickel (Ni)

Current - Average Rectified (Io) :

25 A

Type :

Single Phase Bridge

Number of Elements :

4

Product Type :

Bridge Rectifiers

Number of Pins :

25

Breakdown Voltage-Min :

200 V

Qualification Status :

Not Qualified

Configuration :

BRIDGE, 4 ELEMENTS

Current - Reverse Leakage @ Vr :

500 nA @ 200 V

Package / Case :

MP-25

JESD-30 Code :

S-PUFM-D4

Product Status :

Active

Peak Reflow Temperature (Cel) :

265

Operating Temperature :

-55°C ~ 150°C (TJ)

Length :

29 mm

Mounting Type :

THROUGH-HOLE

Height :

7.9 mm

Terminal Position :

UPPER

Series :

MP25

Termination Style :

Through Hole

Non-rep Pk Forward Current-Max :

300 A

Surface Mount :

No

Diode Type :

Single Phase

Rep Pk Reverse Voltage-Max :

200 V

Max Reverse Leakage Current :

5 µA

Pin Count :

4

Terminal Form :

Solder Lug

Reverse Current-Max :

0.00001 µA

Output Current-Max :

25 A

Min Operating Temperature :

-55 °C

Diode Element Material :

SILICON

Mounting Style :

SMD/SMT

Manufacturer :

Rectron

Tolerance :

Recovery Time - < 60 Hz

HTS Code :

8541.10.00.80

Number of Terminals :

4

Package Shape :

Square

Max Surge Current :

300 A

Number of Phases :

1

Vf - Forward Voltage :

1.1 V

Additional Feature :

UL RECOGNIZED

Max Operating Temperature :

150 °C

Voltage :

Reverse Voltage Vr - 200V

Voltage - Forward (Vf) (Max) @ If :

1.05 V @ 12.5 A

Technology :

Standard

Product Category :

Bridge Rectifiers

RoHS :

Compliant

Pbfree Code :

yes

Brand :

Rectron

Maximum Operating Temperature :

+ 150 C

Package :

Tray

ECCN Code :

EAR99

Supplier Device Package :

MP-25

Width :

29 mm

Case Connection :

Isolated
