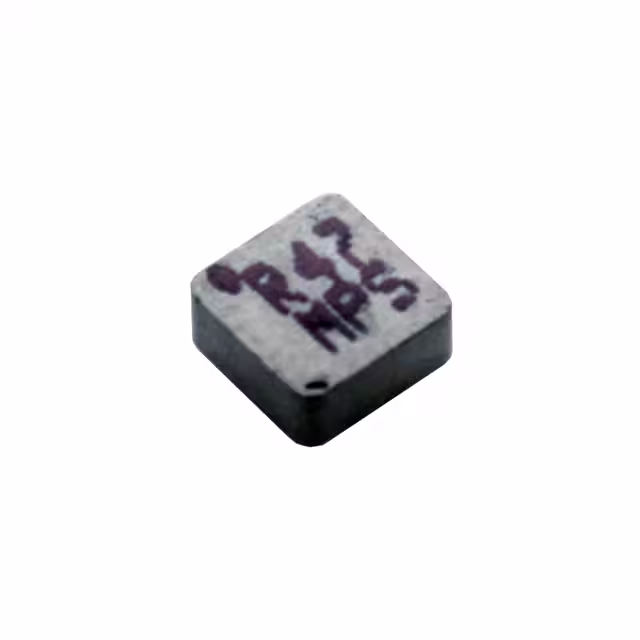

MPL-AL4020-1R0

Manufacturer :

Monolithic Power Systems

Product Category :

Fixed Inductors

Shielding :

Unshielded

Saturation Current :

8.6 A

Base Product Number :

MPL-AL4020

Series :

MPL-AL

Current Rating (Amps) :

7.9 A

Product :

Power Inductors

Height :

1.9 mm

Current - Saturation (Isat) :

8.6A

Minimum Operating Temperature :

- 40 C

Inductance Tolerance :

20

Mounting Style :

PCB Mount

Length :

4.1 mm

Brand :

Monolithic Power Systems (MPS)

Termination :

Flexible (Soft)

Supplier Device Package :

-

Manufacturer :

Monolithic Power Systems (MPS)

Mounting Type :

Surface Mount

Inductance :

1 µH

Product Status :

Active

RoHS :

Details

Self Resonant Frequency :

68 MHz

Frequency - Self Resonant :

-

DC Resistance (DCR) :

10.1mOhm

Ratings :

-

Package / Case :

2-SMD

Test Frequency :

100 kHz

Type :

Molded

Width :

4.1 mm

Maximum Operating Temperature :

+ 155 C

Subcategory :

Inductors, Chokes and Coils

RMS Current (Irms) :

7.9 A

Material - Core :

-

Size / Dimension :

0.161" L x 0.161" W (4.10mm x 4.10mm)

Product Type :

Fixed Inductors

Operating Temperature :

-40°C ~ 155°C

Inductance Frequency - Test :

100 kHz

Product Category :

Power Inductors - SMD

Q @ Freq :

-

Product Width :

4.1 mm

Tolerance :

-

Packaging :

Cut Tape

Termination Style :

SMD/SMT

Features :

-

Height - Seated (Max) :

0.083" (2.10mm)

Package :

Digi-Reel?

Core Type :

Molded

Application :

Power

Product Length :

4.1 mm
