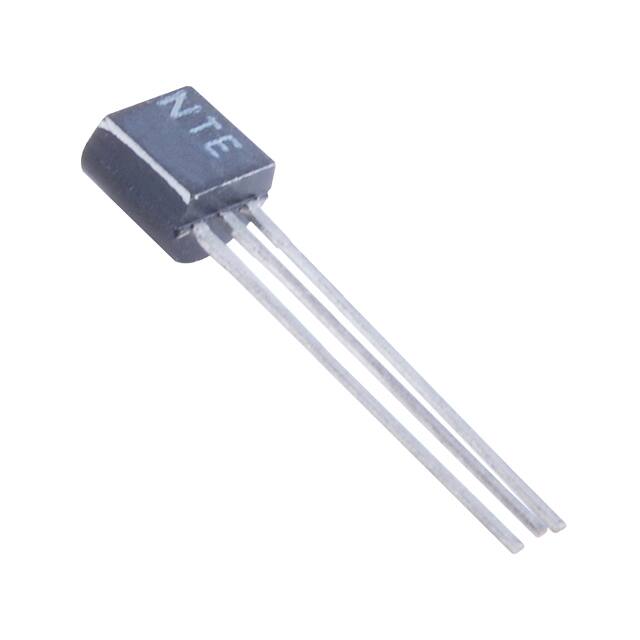

MPS4356

Manufacturer :

NTE Electronics, Inc.

Product Category :

Transistors - Bipolar (BJT) - Single

DC Current Gain-Min (hFE) :

30

Operating Temperature :

-55°C ~ 150°C (TJ)

Package Shape :

Round

Voltage - Collector Emitter Breakdown (Max) :

80 V

Current - Collector Cutoff (Max) :

50nA (ICBO)

Polarity/Channel Type :

PNP

DC Current Gain (hFE) (Min) @ Ic, Vce :

50 @ 10mA, 10V

Vce Saturation (Max) @ Ib, Ic :

500mV @ 50mA, 500mA

Package / Case :

TO-226-3, TO-92-3 (TO-226AA)

JESD-30 Code :

O-PBCY-W3

Series :

-

JEDEC-95 Code :

TO-92

Number of Elements :

1

Supplier Device Package :

TO-92

Product Status :

Active

Terminal Position :

BOTTOM

Manufacturer :

NTE Electronics

Frequency - Transition :

-

Package :

Bag

Surface Mount :

No

Reach Compliance Code :

Unknown

Collector-Emitter Voltage-Max :

80 V

Transistor Type :

PNP

Mounting Type :

Through Hole

Configuration :

Single

Current - Collector (Ic) (Max) :

800 mA

Transistor Element Material :

SILICON

RoHS :

Non-Compliant

Terminal Form :

Wire

Power - Max :

625 mW

Number of Terminals :

3

Transistor Application :

SWITCHING

Collector Current-Max (IC) :

0.8 A
