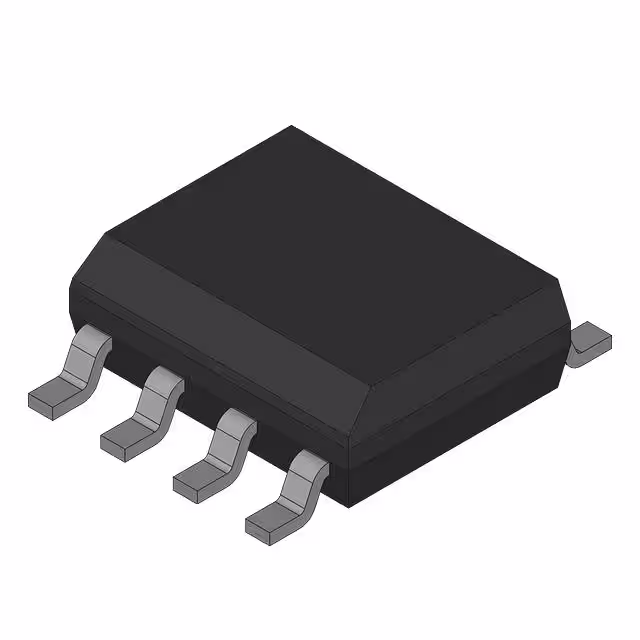

MPXH6250AC6T1

Manufacturer :

Freescale Semiconductor

Product Category :

Pressure Sensors, Transducers

Surface Mount :

yes

Additional Feature :

TEMPERATURE COMPENSATED, SIGNAL CONDITION

Port Type :

Straight

Sensors/Transducers Type :

PRESSURE SENSOR,PEIZORESISTIVE

Mounting Feature :

Surface Mount

Sensitivity (mV/V) :

20.4 mV/V

Output Type :

Analog Voltage

Housing :

Plastic

ECCN Code :

EAR99

Body Height :

9.65mm

Supply Voltage-Min (Vsup) :

4.74V

Body Length or Diameter :

8.5mm

Output Range :

0.30-4.90V

Pressure Range-Max :

36 Psi

Accuracy-Max :

1.5%

Pbfree Code :

No

Pressure Range-Min :

3 psi

Termination Type :

Solder

Operating Current-Max :

10mA

Operating Temperature (Min) :

-40°C

Response Time :

1000 μs

RoHS Status :

RoHS Compliant

HTS Code :

8542.31.00.01

Pressure Sensing Mode :

Absolute

Supply Voltage-Max (Vsup) :

5.46V

Linearity :

1.5 %

Operating Temperature (Max) :

125°C

Offset-Nom :

0.20V

Body Breadth :

8.5 mm
