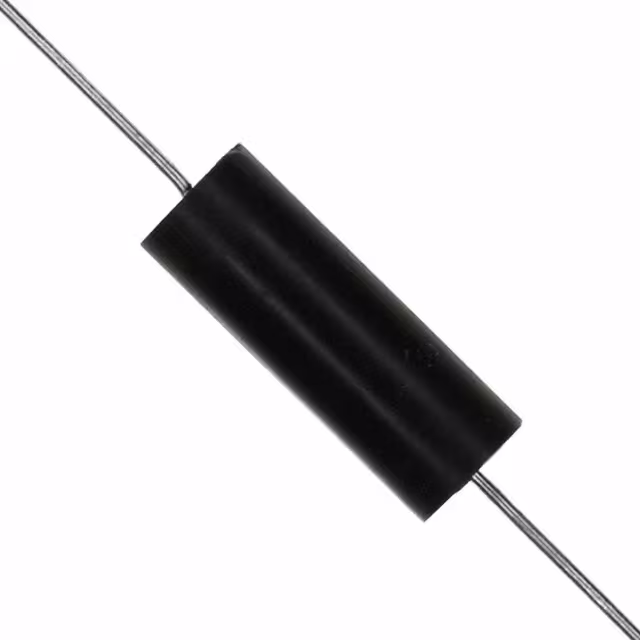

MR1JB13L0

Manufacturer :

Stackpole Electronics, Inc.

Product Category :

Through Hole Resistors

Product Type :

Current Sense Resistors

Number of Terminations :

2

Failure Rate :

-

Package / Case :

Axial

Tolerance :

±5%

Application :

Current Sense

Supplier Device Package :

Axial

Package Length :

9.78

Power Rating :

1 W

Diameter :

3.43 mm

Terminal Finish :

Matte Tin (Sn)

Number of Terminals :

2

Technology :

Metal Alloy

Length :

9.78 mm

JESD-609 Code :

e3

Termination Style :

Axial

Package :

Bulk

Lead Diameter :

0.81

Composition :

Metal Element

Size / Dimension :

0.135" Dia x 0.385" L (3.43mm x 9.78mm)

Lead Length :

34.93

Construction :

Tubular

Series :

MR

Subcategory :

Resistors

Features :

Moisture Resistant, Non-Inductive, Non-Magnetic

Maximum Operating Temperature :

+ 275 C

Mounting Style :

PCB Mount

Operating Temperature :

-55°C ~ 275°C

Resistor Type :

FIXED RESISTOR

Power (Watts) :

1W

Product Status :

Active

Temperature Coefficient :

-

Height - Seated (Max) :

-

Package Shape :

TUBULAR PACKAGE

Minimum Operating Temperature :

- 55 C

Rated Power Dissipation (P) :

1

Resistance :

13 mOhms

Packing Method :

Bulk
