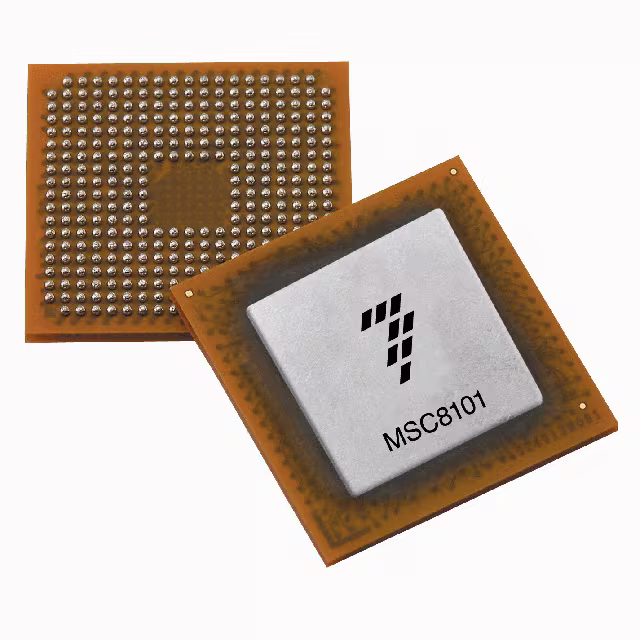

MSC8101M1375F

Manufacturer :

NXP Semiconductors

Product Category :

DSP (Digital Signal Processors)

Time@Peak Reflow Temperature-Max (s) :

30

HTS Code :

8542.31.00.01

Boundary Scan :

yes

Bit Size :

16

Power Supplies :

1.63.3V

Pbfree Code :

No

JESD-609 Code :

e0

Terminal Form :

Ball

ECCN Code :

3A991

Address Bus Width :

32

Supply Voltage-Min (Vsup) :

1.5V

Width :

17mm

Mount :

Surface Mount

Package / Case :

FCBGA

External Data Bus Width :

64

Number of Terminations :

332

RoHS Status :

Non-RoHS Compliant

Number of Pins :

332

Lead Free :

Contains Lead

Low Power Mode :

yes

Internal Bus Architecture :

Single

Barrel Shifter :

No

Supply Voltage :

1.6V

Qualification Status :

Not Qualified

Min Operating Temperature :

-40°C

Supply Voltage-Max (Vsup) :

1.7V

Reach Compliance Code :

not_compliant

Moisture Sensitivity Level (MSL) :

3 (168 Hours)

Length :

17mm

Pin Count :

332

Max Operating Temperature :

105°C

Format :

FIXED POINT

Terminal Pitch :

0.8mm

Frequency :

275MHz

RAM (words) :

262144

uPs/uCs/Peripheral ICs Type :

DIGITAL SIGNAL PROCESSOR, OTHER

Height Seated (Max) :

3.18mm

Peak Reflow Temperature (Cel) :

220

Terminal Position :

BOTTOM

Terminal Finish :

Tin/Lead/Silver (Sn/Pb/Ag)
